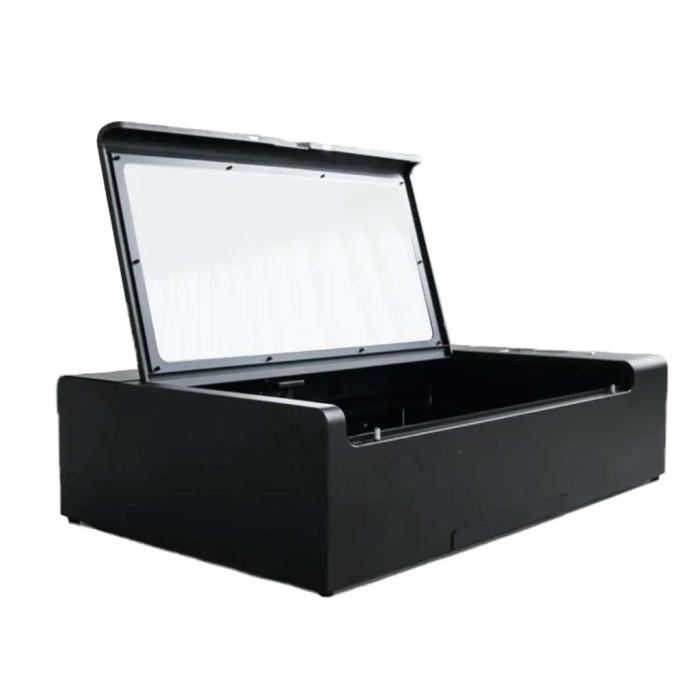

HEXA, the newest addition to the FLUX laser cutter family is 33% bigger, 3x faster, and more powerful than other FLUX desktop laser cutters and engravers currently available with 60W of power. This increased work area is great for people who require a huge work area or need high-capacity output.

  • More Space to Create

    Flux Hexa Provides a working area of ​​730 x 410 x 125mm. This is a whopping 33% larger than the Beambox Pro! This increased work space is great for people who require a huge work area or need high-capacity output. This larger area design takes your creation options to a whole new level!

  • High Speed Engraving

    Equipped with a high-performance Cortex M4 core chip, the FLUX HEXA can reach speeds up to 900 mm/s. That's 3 times faster than the Beambox Pro! This high-speed engraving and cutting allows you to create faster than ever before.

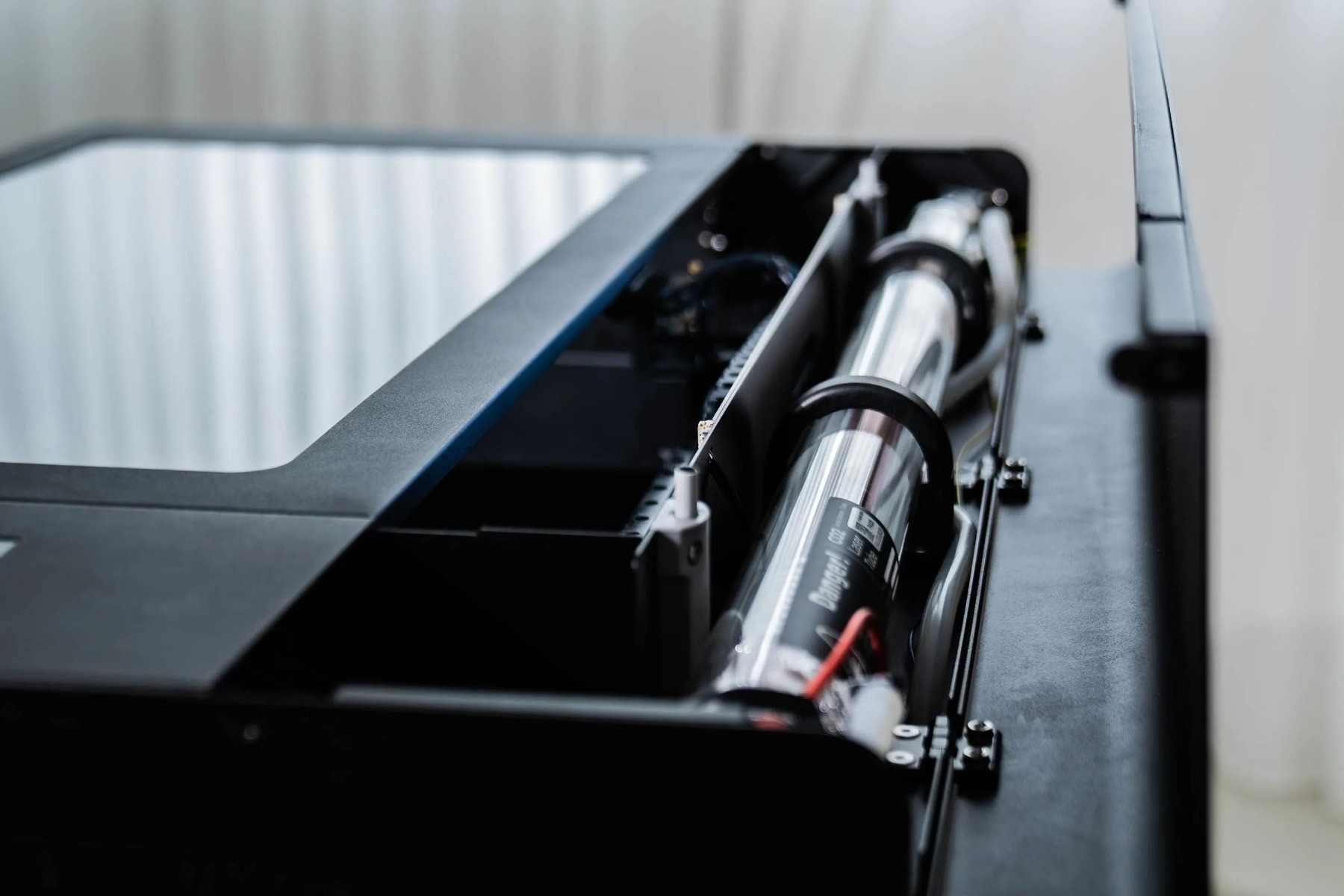

  • High Specification Laser Tube

    The HEXA comes with a brand new, high specification 60W laser tube with an optional 1.5 inch focus lens, substantially shrinking the laser spot, allowing the Hexa to achieve 1000 DPI resolution. The new laser tube has a 10,000 hour lifespan and comes with a 1 year warranty.

  • Focus at the Touch of a Button

    With Flux HEXA's new autofocus and motorized work platform, focusing your laser cutter is easier than ever before! You can simply just press the autofocus button and let the machine do the work for you or you can manually focus it on your own!

  • Safety Features

    Safety sensors are installed to alert you in case of unplanned movement, to give you an overheated temperature warning and a fire alarm.

  • Electric Elevation Platform

    The FLUX HEXA is equipped with an electric elevation platform. Double tap to automatically adjust to optimized platform height.

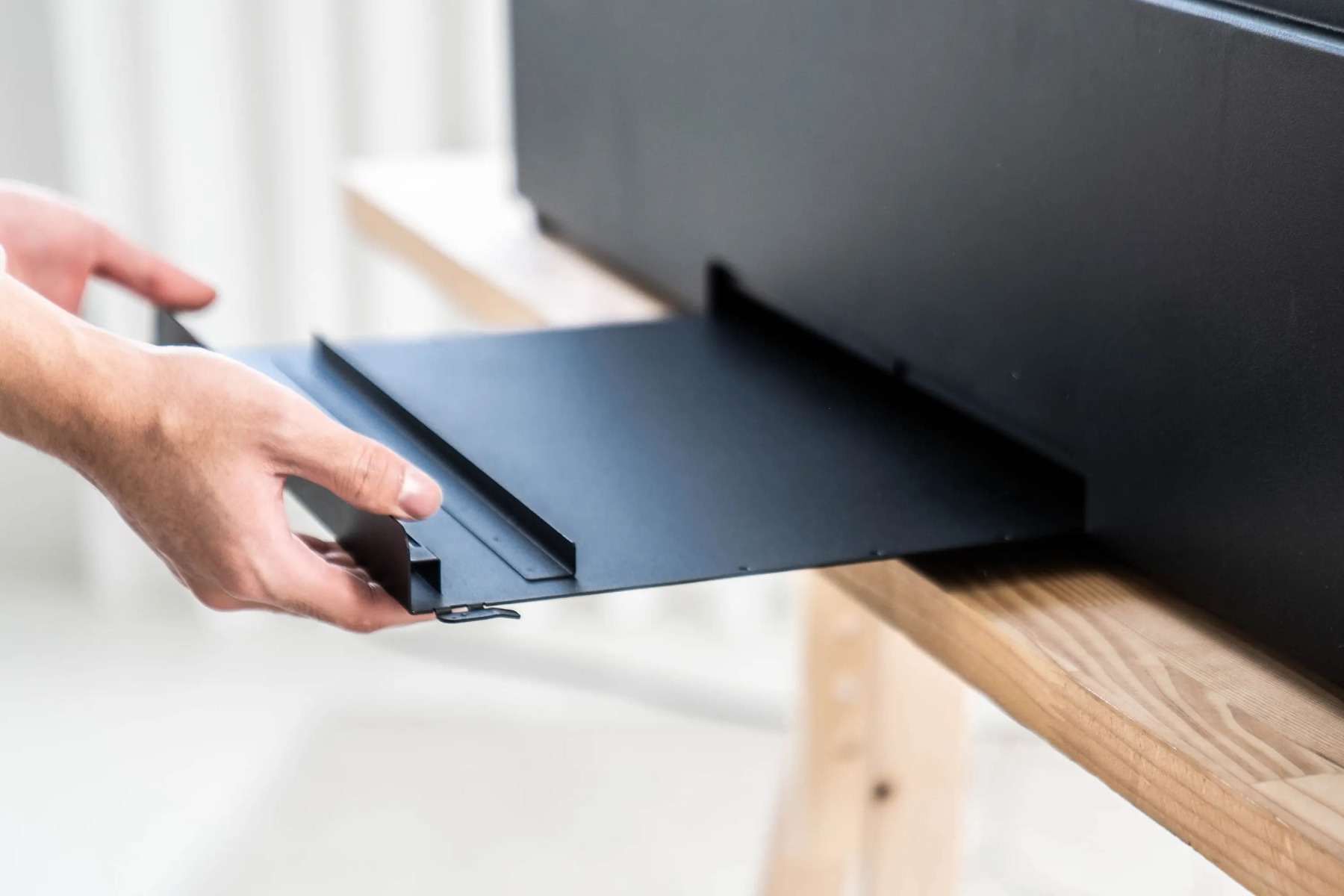

  • Built-in Cleaning Slot

    The FLUX HEXA comes with a convenient built-in slot for easy cleanup.

Easy to Connect
  • The FLUX HEXA has multiple connection options to choose from
    • Wifi Supported
    • Flash Drive Supported
    • USB Wire Supported
    • Hardwire Supported
    • Mobile Device Supported
Dimensions 1110 x 670 x 273 mm
Weight 58 kg
Work Area​ 730 x 410 mm
Work Area Depth 125 mm
Camera Preview Area 730 x 395 mm
Power AC 110 V / 220 V
Speed 1 - 900mm/s
Touch Panel 7" 1024 x 600 LCD
Camera HD CMOS
I/O Wi-Fi / USB / Ethernet / Direct Network Cable
Spec 60 W CO₂ Laser
Wavelength 10640 nm
Cutting Thickness 0 - 10 mm (varies by material)
Mode Vector / Graphic (monochrome, gray scale)
Operating System Windows / macOS / Linux / Chrome OS
File Types JPG / PNG / SVG / DXF / AI / PDF
