4 Stroke Diesel Hand Crank Model with Actuating Movable Parts to Demonstrate Engine Basics - 16" Tall - Eisco Labs

SKU

Eisco_PH0492

Manufacturer No

PH0492

Eisco Labs

Rating:

80 % of 100

1 Reviews Add Your Review

$181.94

Quantity:

Add to Wish List

This is a special order item and delivery can take up to 90 days. Please request a quote for lead time.

Manufacturer ID - PH0492

Functioning Parts: Crankshaft, cam, cam gear, connecting rods, piston, intake/exhaust valves, rocker arms, push rods, fuel pump.

Ignition light and glow plug can be activated by using a 6V power supply

Identifiable parts: Crank Case, Crank Shaft, Connecting Rod, Cylinder, Piston, Intake Valve, Exhaust Valve, Pestle Shaft, Glow Candle, Swing Lever, Exhaust Manifold/Pipe, Cam Shaft Gear, Injection Pump, Governor Spindle, Supply Line, Cylinder Pump, Piston Pump, Pressure Vale, Delivery Pipe, Suction Sub, Air Filter, Injection Nozzle, Nozzle Body, Nozzle Needle, Pressure Bolt, Pressure Socket, Oil Return

Turn the hand crank on this model and you will see all the functioning stages of a 4 stroke diesel motor

Made of cast alloys and abs plastic, built for years of demonstrations

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

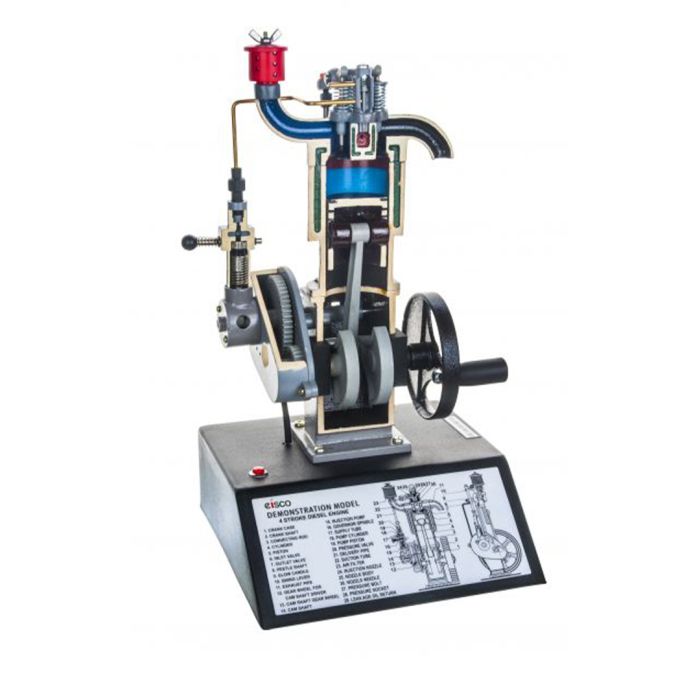

4 Stroke diesel hand crank model with actuating movable parts to demonstrate engine basics - 16" Tall. The perfect model for a student of the automotive world or an automotive enthusiast. This model works by cranking the main shaft by hand which then actuates all the parts of the motor to show the stages of a 4 stroke diesel motor firing.
