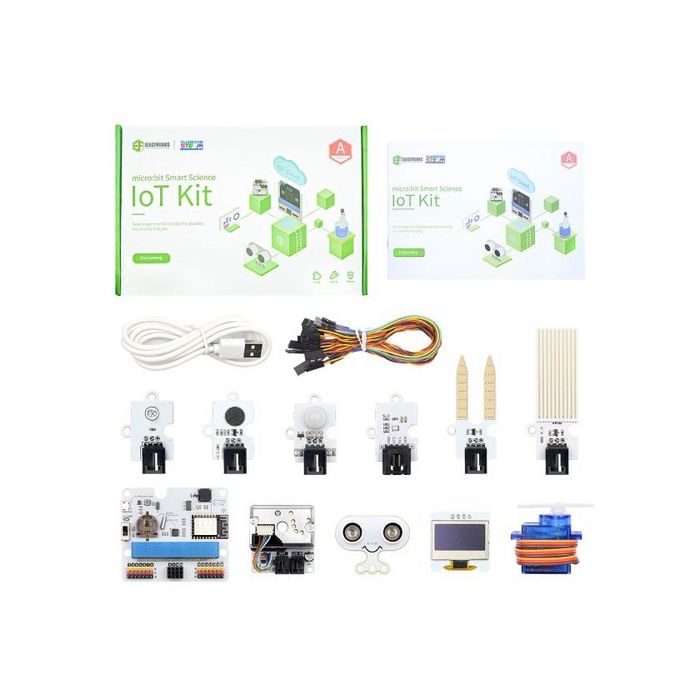

micro:bit smart science IoT kit (without micro:bit)

SKU
Elecfreaks_EF08203
Manufacturer No
EF08203
Rating:
80 % of 100
$69.90
Add to Wish List

Manufacturer ID -EF08203

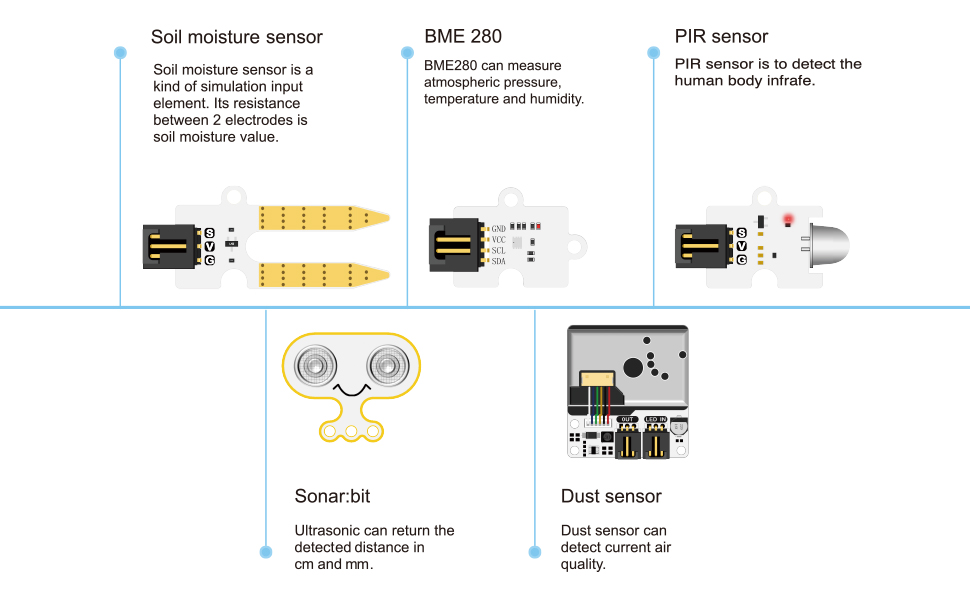

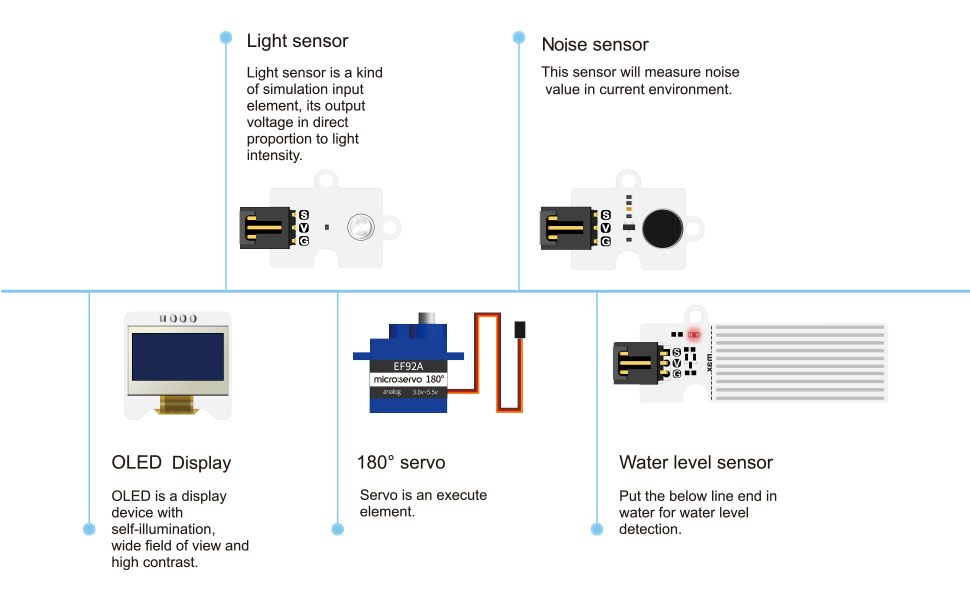

micro:bit IoT:bit - ELECFREAKS Smart Science IoT Kit is developed based on IOT:bit, a new breakout board compatible with science sensors such as the ultrasonic sensor, dust sensor, light sensor, and water level sensor, including RTC Timing and WIFI module.

micro:bit + Internet - Support Thingspeak/ IFTTT Oline Education to Learn Infinite. You can gather data via the sensors and send data to the cloud with more stable and accurate data analysis.

IOT:bit Characteristic - (1) Integrated ESP12F WiFi, RTC, earphone jack, and passive buzzer (2)Adaptive for Building Blocks (4 standard spacing fixed holes) (3)Separately lead IIC interface, directly plug in OLED, BME280, and IIC, etc

Fun Smart Science Case - You can build scenes like Air quality monitoring, Environmental noise detection, An environmental quality monitoring station, automatic irrigation detection, A self-defense monitoring station, and more.

Graphical Programming Languages - Rich makecode graphical programming blocks allow kids to learn programming from the simplest to the more complex.

Description

ELECFREAKS Smart Science IoT Kit is developed based on IOT:bit, a new breakout board compatible with science sensors such as the ultrasonic sensor, dust sensor, light sensor, and water level sensor, including RTC Timing and WIFI module. You can gather data via the sensors and send data to the cloud with a more stable and accurate data analysis.

3 layers: Perception layer, Network layer, and Application layer

send experimental data to the cloud for visual data analysis, reacting, and giving instructions to each device.

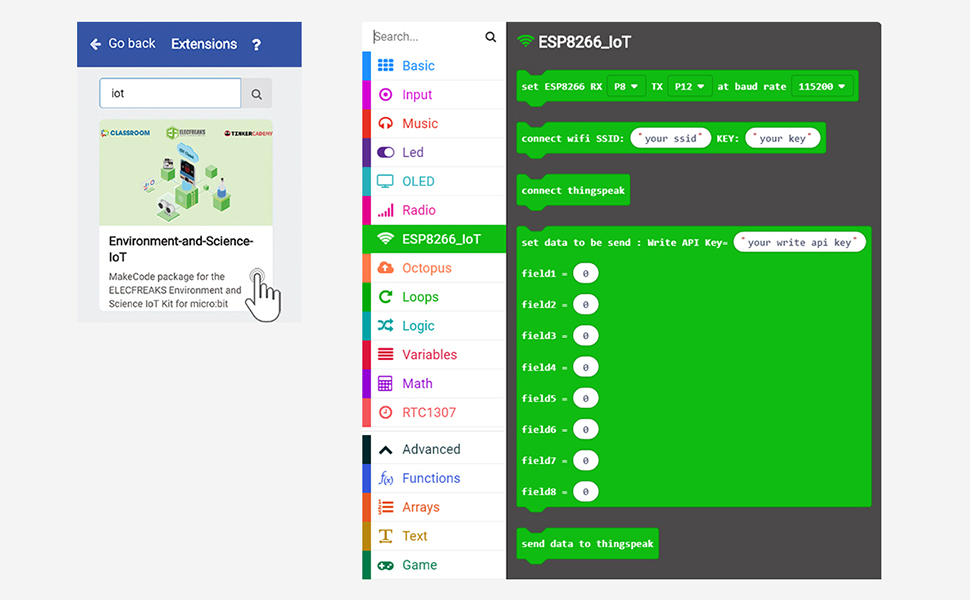

PROGRAMMING

Search "IOT" in Makecode

Let's enjoy the joy of programming, every child can become a maker.

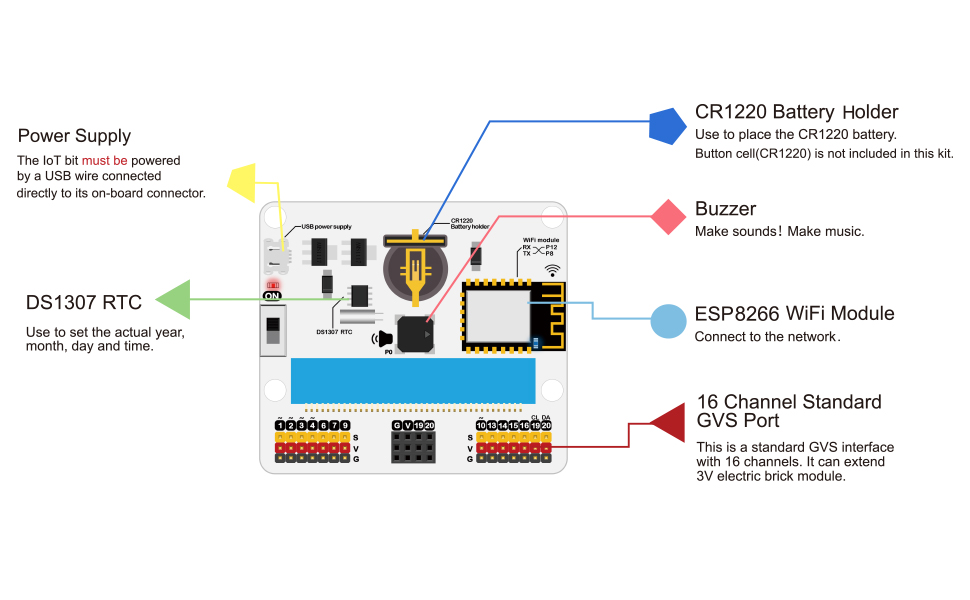

IOT:bit Expansion Board

IOT:bit is an expansion board based on IoT for micro:bit

IOT:bit is an expansion board based on IOT for micro:bit, it can support the sensors in 3-pins, the actuator, and the buzzer, it can also give a specific time telling even the micro:bit powers off with the RTC onboard.

It uses ESP8266 as a WIFI expansion board and serial port to communicate with micro:bit. It also has extended all available IO ports of the micro:bit which is led by GVS and you can extend various 3V E-blocks as LED, photosensitive, and servo by using it. At the same time, the IOT:bit with an on-board buzzer for outside sound and an onboard RTC clock for timing without a power supply. The codebase for makecode can connect to Thingspeak conveniently and create your IoT project quickly.

DETAIL

LEARN

Smart Science IoT Kit

Related Posts

Micro: bit Fundamental Course--Button&Display

Specification
Brand Elecfreaks
Manufacturer ID EF08203
Battery CR1220
RTC DS1307
