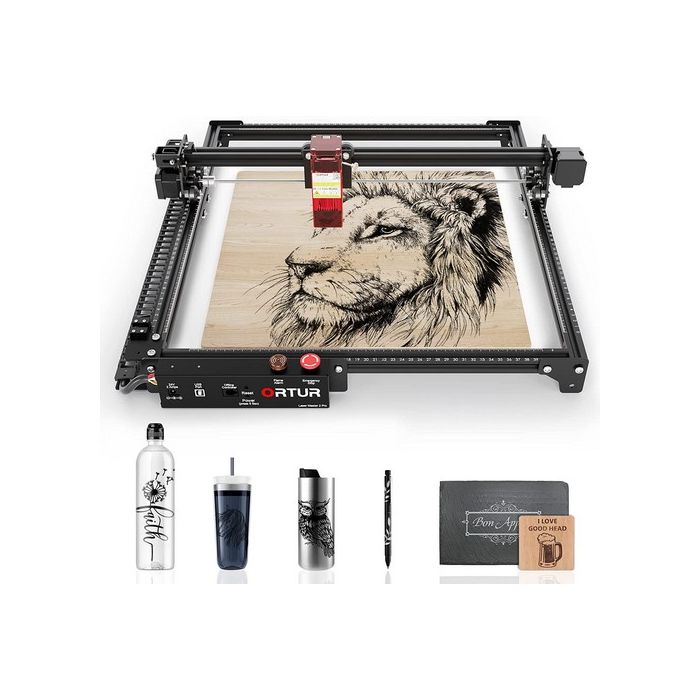

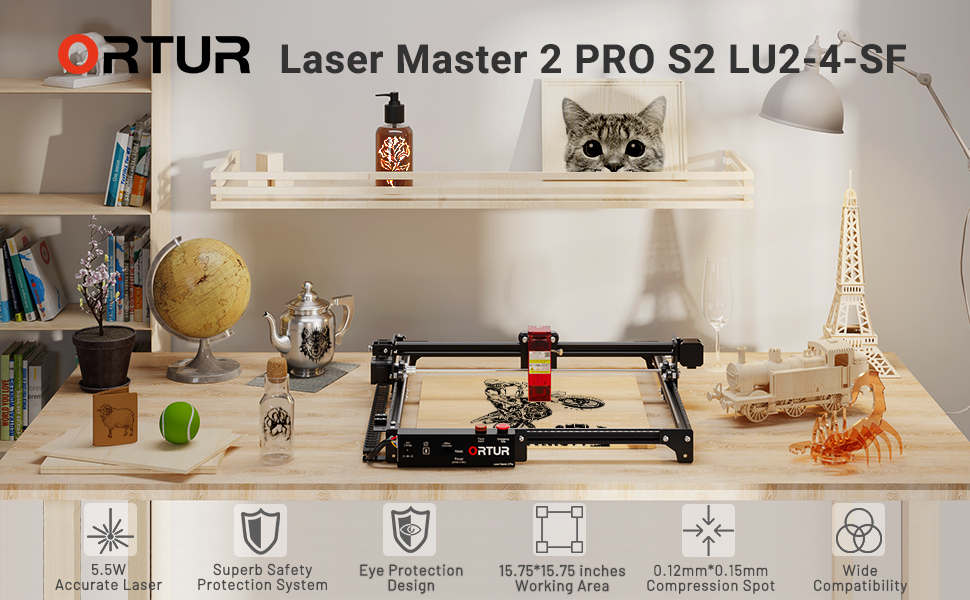

ORTUR 24V Laser Engraver 2 Pro-S2-SF

See Sale Pricing at Checkout
SKU
Ortur_OLM2-Pro S2-LU2-4 SF
Manufacturer No
OLM2-Pro S2-LU2-4 SF
Rating:
0 % of 100
$348.49
Add to Wish List

Manufacturer No -OLM2-Pro S2-LU2-4 SF

[Ortur new upgrade pro model] Laser Master 2 Pro S2 SF is newly upgraded, adding new functions such as flame detection, emergency stop, etc., with stronger system reliability, smooth engraving, faster engraving speed, higher accuracy, and more refined engraving products. The new upgrade brings users a better experience!

[Overall optimization] Laser Master 2 Pro S2 SF has a longer service life, because the mechanical structure has been optimized and designed to have a faster speed and can work stably for a long time. At the same time, Ortur Laser Master 2 Pro can provide users with more security because it has more security features.

[Accessories system update] 1. Because it is equipped with the latest OLM-PRO-V10 motherboard, the engraving is smoother and more delicate, the engraving accuracy is higher, and the speed is faster. 2. The circuit system with 24V voltage is upgraded, the current is lower, and the system is safer. 3. Update Ortur Laser 1.8 firmware, which is the most advanced laser engraving machine firmware at present, with more powerful functions. 4. Support Ortur offline control screen.

Description

Note

ORTUR Laser Master 2 PRO S2 LU2-4-SF is good at cutting and better at engraving harder materials (such as stainless steel and other hard materials), and could support a higher speed.

 It is not that the smaller the laser spot, the better the effect. When engraving photos, you may need to increase the laser spot to get a better picture effect.

 The competitors may falsely promote the power of similar laser modules as 40W, or even 60W, please take care.

Extra Accessoriesļ¼šSafety Glasses, 10PCS Metal Business Cards, 2PCS Color Paper, 4PCS Pet ID Tags.

 Focal Length: It has a shorter Focal Length, so it has a smaller Focal Spot, but shorter Depth of Field

ADVANTAGES

 24V Electric System: More power,lower current,safer,support to expand more adds-ons.

 CABLE LOOM Flexible Cable: Cable Loom accommodating wires, beautiful and clean.

 SCALE MARK Auxiliary Use: A scale is printed on the aluminum profile for easy position adjustment.

FULL METAL BODY Structure: Full sheet metal + aluminum profile body, when fasten graving machine, the body does not shake, and the machine runs more stably.

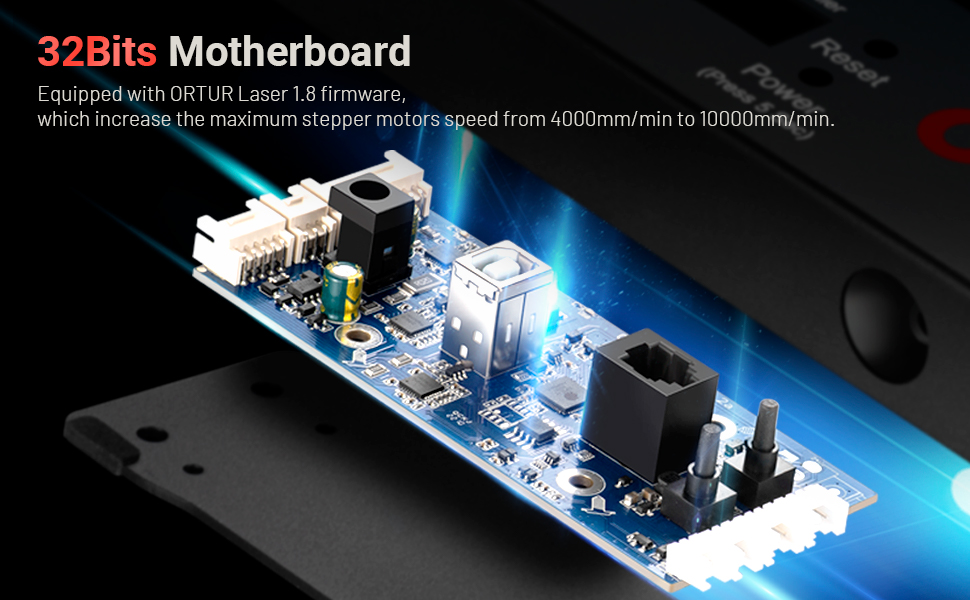

UPGRADE MOTHERBOARD

 Specialized Motherboard with 32Bits MCU. It could pre-process 32 instructions, support baud rate as high as 921600, more powerful!

The Most Advanced 32Bits Laser Engraver Firmware - ORTUR laser master firmware, smarter, faster, higher precision and easier to use.

Laser power range could be S0 - S1000, compared to 8Bits desktop laser engravers, which only has S0 - S255, ORTUR Laser Master could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper , that the 8Bits high power laser engravers could not do.

Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S )

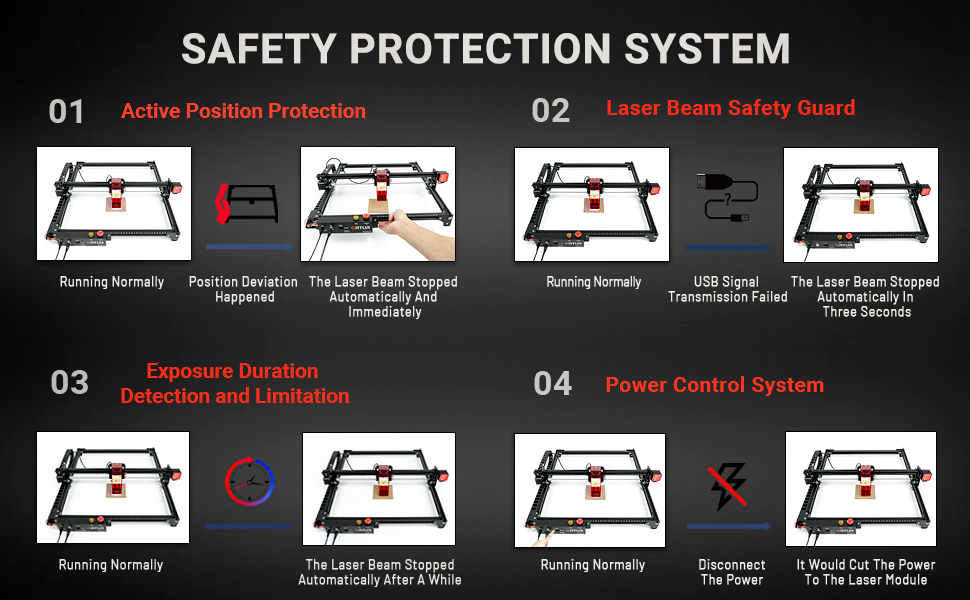

SAFETY PROTECTION SYSTEM



Specification
Model Number OLM2-Pro S2-LU2-4 SF
Power System 24V/2A
Default Focal Length 50mm
Wave Length 445Ā±5nm
Power Rate S0-S1,000
Material Capability ā€Žā€Žā€Žā€ŽSquare spPaper, Corrugated Paper, Wood, Acrylic, Cloth, Denim, Leather, Base Plate, ABS-based Color Board, Rubber, Cork, Sandpaper, Food, Glass Fiber, Plastic, etc.
ot
