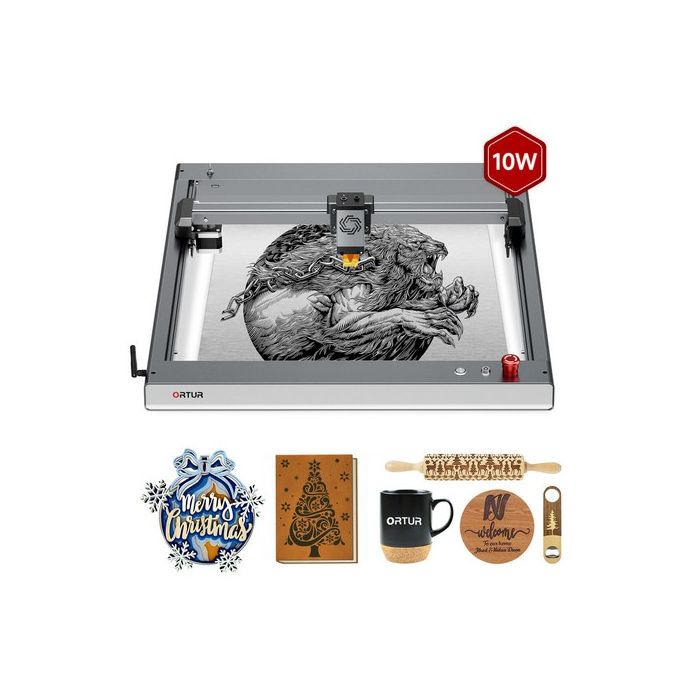

Ortur LM3 Laser Engraving & Cutting Machine 20,000mm/min 10W

Manufacturer No
80 % of 100
Add to Wish List

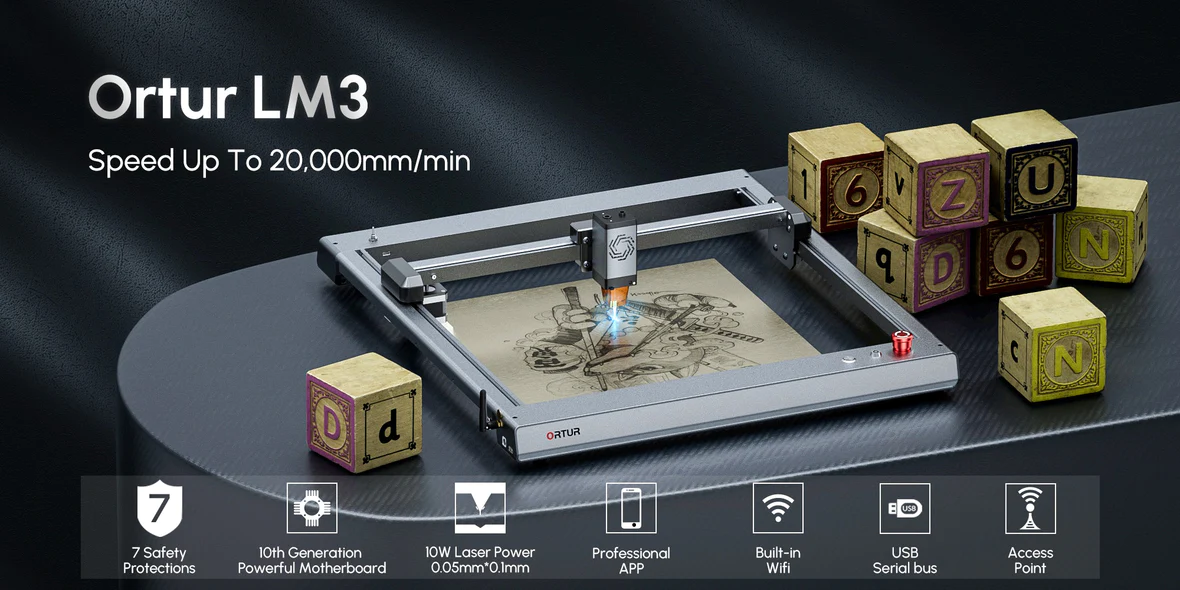

Ortur Laser Master 3

Ortur LM3 is a series of affordable and user-friendly laser engraving machines for various applications. The LM3 offers a better experience of faster engravings, around 20,000mm/min with stronger cutting power. With its high precision, TMC silent Stepper drivers, and 10W True Optical Power can engrave anything in no time. LM3 from Ortur weighs significantly less than most desktop 3D printers and works well with acrylic too.

Key Features:

  • Ortur laser engravers has 20,000mm/min speed which provides perfect work in less time.
  • It has a field size of 8 mm which supports maximum cutting thickness - 20mm wood or 30mm Acrylic.
  • LM3 series features higher precision bringing delicate details at 0.01mm.
  • The laser machine is user friendly as it can be controlled by apps and compatible with  iPhone, Android Phones, iPad and Android Pad making engraving easy and can be done anytime, anywhere.
  • Ortur LM3 provides dual fans reach up to 10,000 rpm, improving the durability of the laser and ensuring a service life of up to 10,000 hours.
  • The laser machine having built-in tubes combined with air-guided blinds that control the cooling airflow, help reduce dust buildup on the lenses and thus reduce wear and tear.

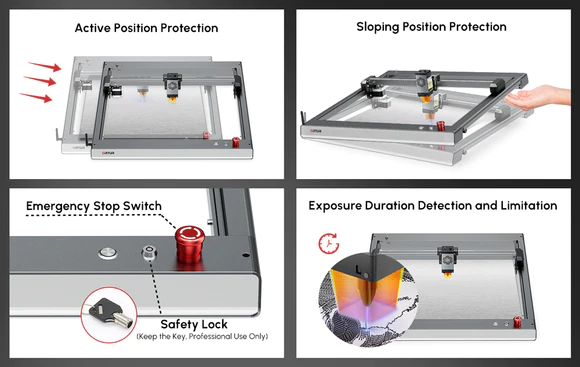

7 safety features

  • Safety Lock (Keep the Key, Professional Use Only)
  •  Active Position Protection
  •  Sloping Position Protection
  •  Exposure Duration Detection and Limitation
  •  Voltage and Current Safety Control System
  •  Host Computer Watchdog
  •  Emergency Stop Switch

Ortur LM3 Laser Engraving & Cutting Machine 20,000mm/min 10W

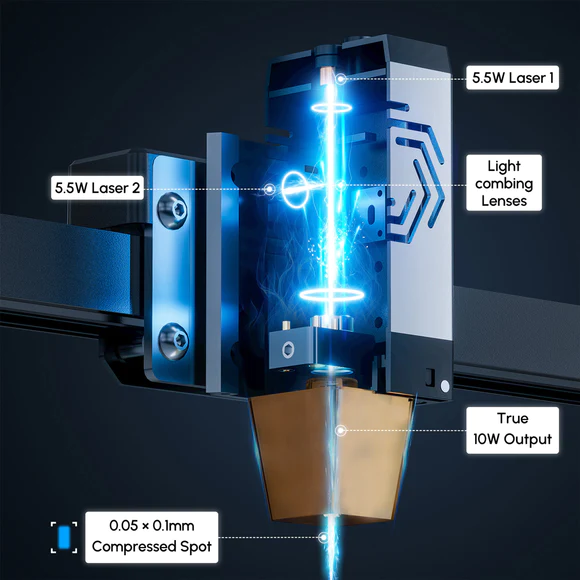

Stable & Lighter 10W Laser Module

The 4th Generation of Laser Spot Compression Technology
The 2nd Generation of Laser Diodes Combining Technology

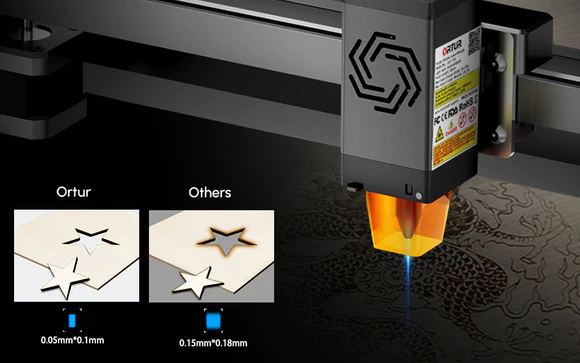

Higher Precision

The Improved Mechanical Structure
Focal Spot 0.05x0.1mm
Bring Delicate Details at 0.01mm

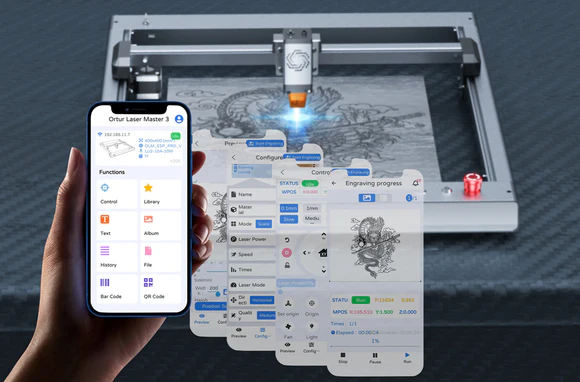

Professional APP, But Easy to Use

Switchable Modes: Easy Mode or Professional Mode
Automatic Operation Guide, Novice Friendly
Support iPhones, Android Phones, iPads, Android Pads
Support printing photos from mobile phones

The Latest Smart Laser Engraver Solution


From Ortur Laser Application Technology Lab
The 11th Generation Of Laser Motherboard
The V2.0 Series Smart Laser Firmware
In a Word, Know More Your Want, Easy to Use

7 Safety Features

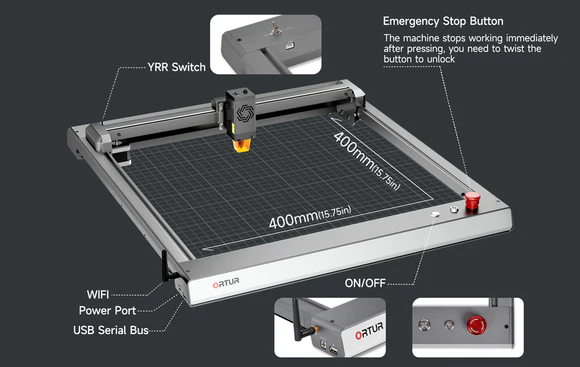

More Innovative Designs YRR Switch

Emergency Stop Button
WIFI+Power Port+USB Serial Bus
U Disk+Security key

Laser Power 10 W
Engraving Area 400*400 mm
Engraving Speed 0-20,000mm/min
Gross Weight 14.33 lbs
Input Voltage 110-220 V
Power Adapter Output 24V/ 4A
Machine Size 641*625*150mm
Laser Wavelength 455+/-5nm
Spot Size About 0.05*0.1mm
Motors 42 x 60 Y Stepper Motor x1; 42 x 40 X Stepper Motor x1
Product Material 70% Aluminum + 15% Steel + 5% Brass + 5% Others
Available Luminous Power LU2-10A (9500-10500mw)
Control Software Laser GRBL / Light Burn/ Laser Explorer (Ortur App)
Warranty 1 Year
