Revopoint MetroX: Blue Laser Line and Full-field Structured Light 3D Scanner

Name: Revopoint MetroX: Blue Laser Line and Full-field Structured Light 3D Scanner
Brand: Revopoint
SKU: R-MX

Only %1 left

SKU

R-MX

Manufacturer No

Revopoint

Rating:

80 % of 100

1 Reviews Add Your Review

As low as $999.00

Quantity:

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

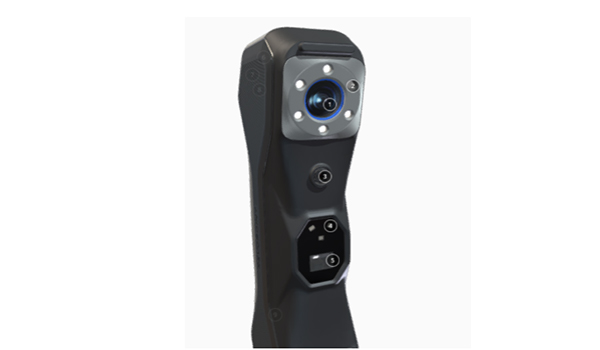

MetroX 3D Scanner

14 Blue Laser Cross Lines
7 Blue Laser Parallel Lines
62 Line Blue Full-field Structured Light
Automated Turntable Scanning Mode

About This Item

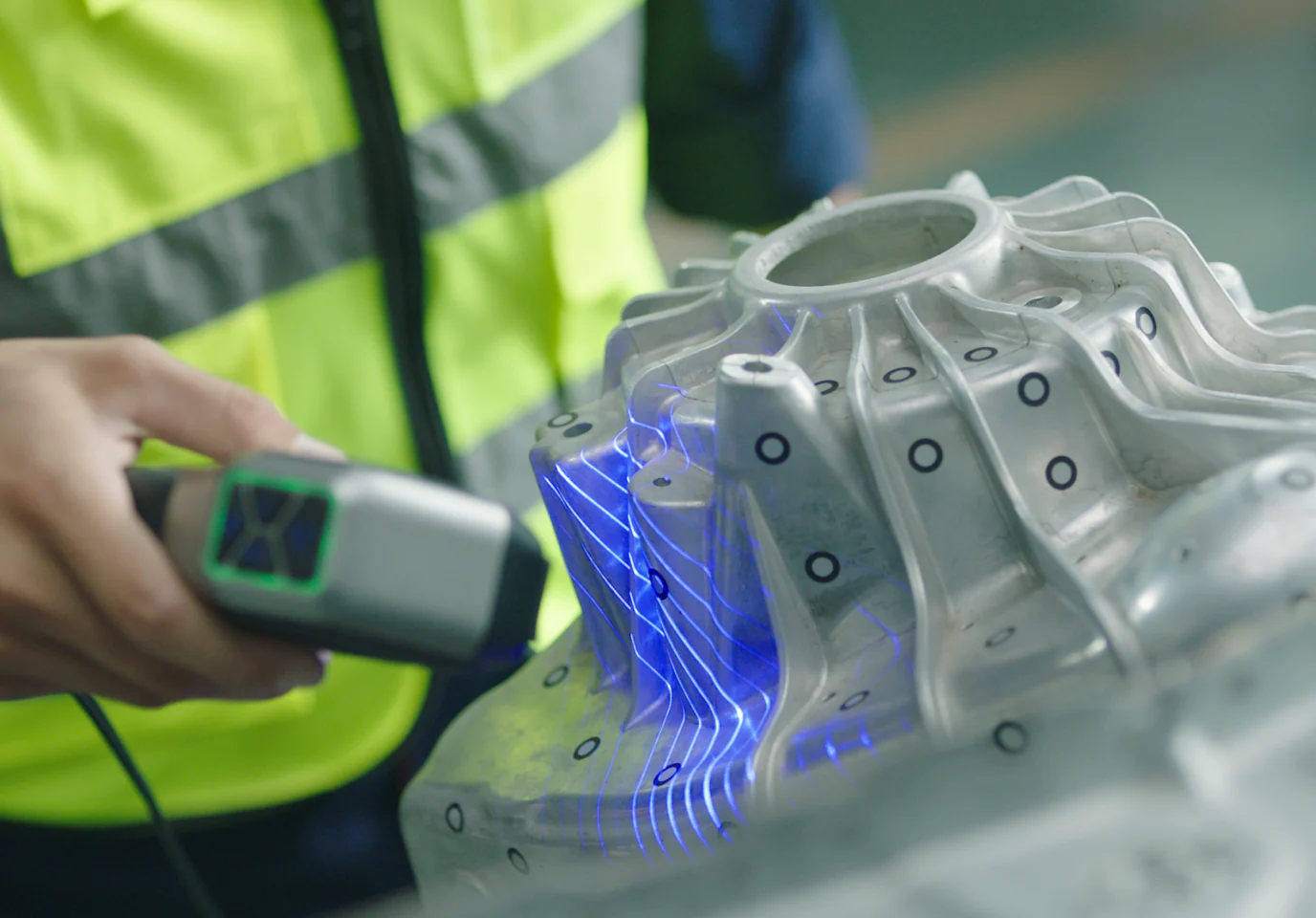

Cross Lines

Up to 800,00 points per second with GPU accelerated* 14 crossed blue laser lines.
Parallel Lines

Capture objects with 7 high-powered parallel blue laser lines.
Full-field Blue Structured Light

Get it scanned fast at up to 7 million points per second using 62 lines of structured blue light.
Auto Turntable

One-click scans with the Dual-axis Turntable, Revo Scan, and MetroX working in unison.

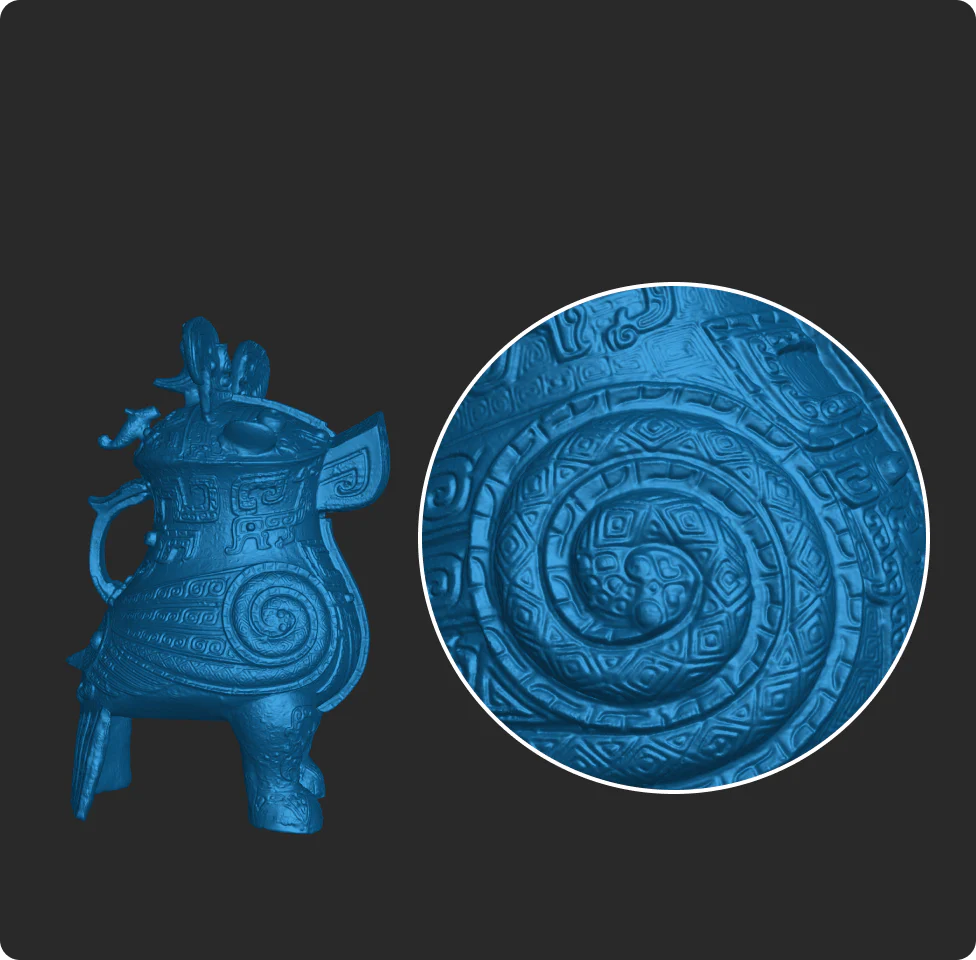

Metrology-grade Accuracy

Precision: Up to 0.01 mm
Accuracy: Up to 0.02 mm
Flexible Single Capture Area

160 x 70 mm at 200 mm
320 x 215 mm at 400 mm

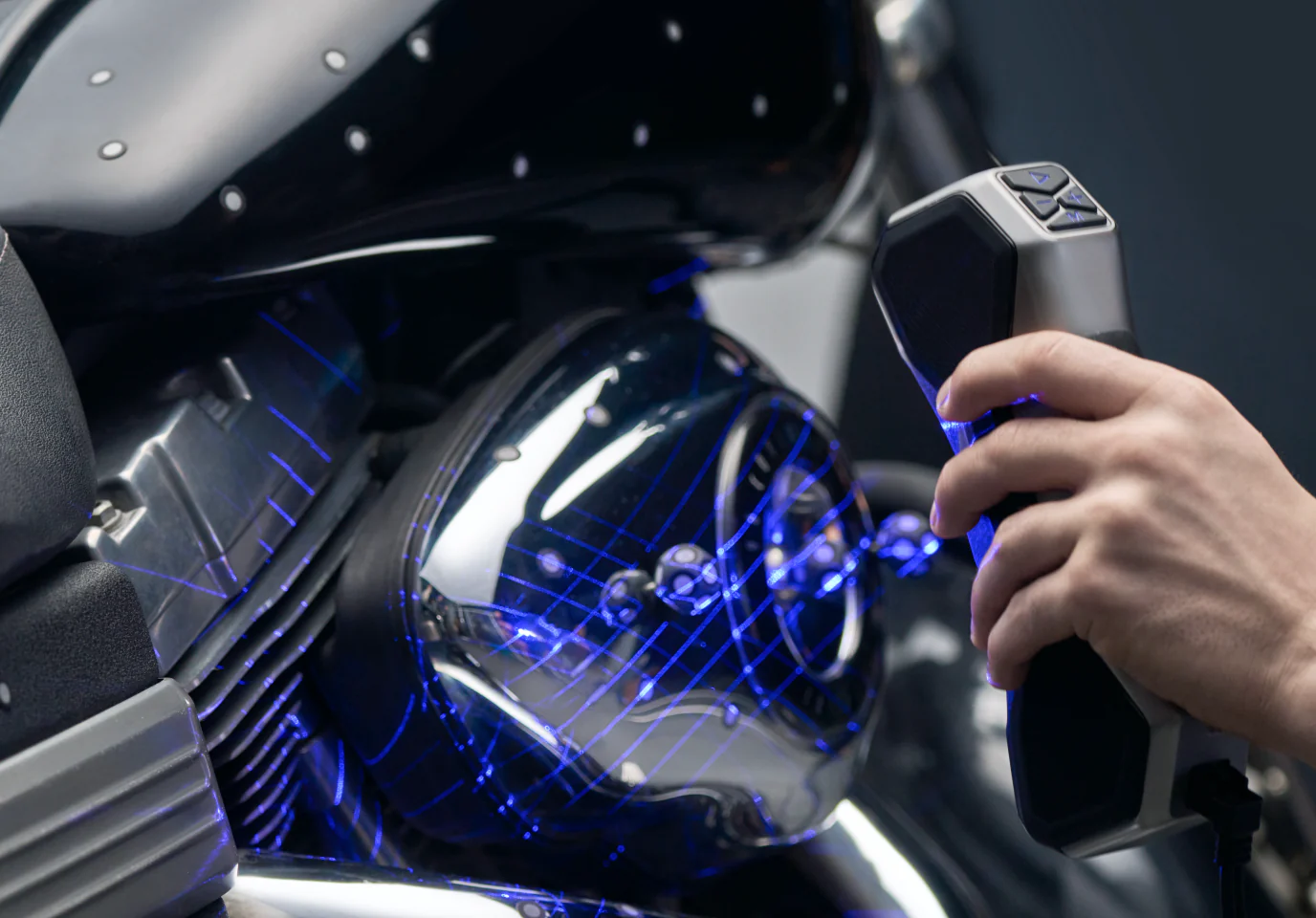

No Spray Needed

Scan Shiny or Black Surfaces
Get Scans Done Fast

Up to 7,000,000 Points/s in Full-field Structured Light Mode

Up to 800,000 Points/s in Multi-line Laser Mode

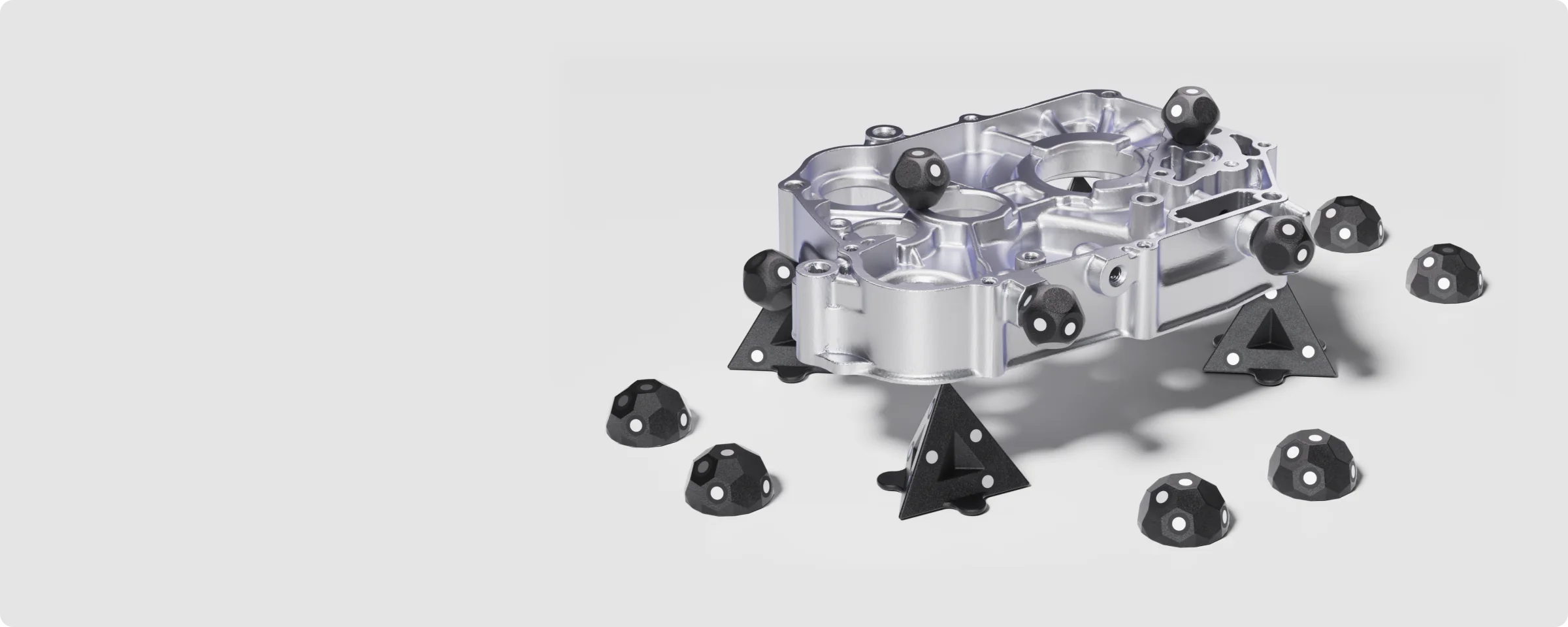

Marker Blocks Help Scan Faster

This handy set of shaped marker blocks makes setting up featureless object scans much faster.
Powerful Software Revo Scan 5 MetroX

Revo Scan 5 MetroX does everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting.
Fast GPU Powered Scans

Up to 60 FPS

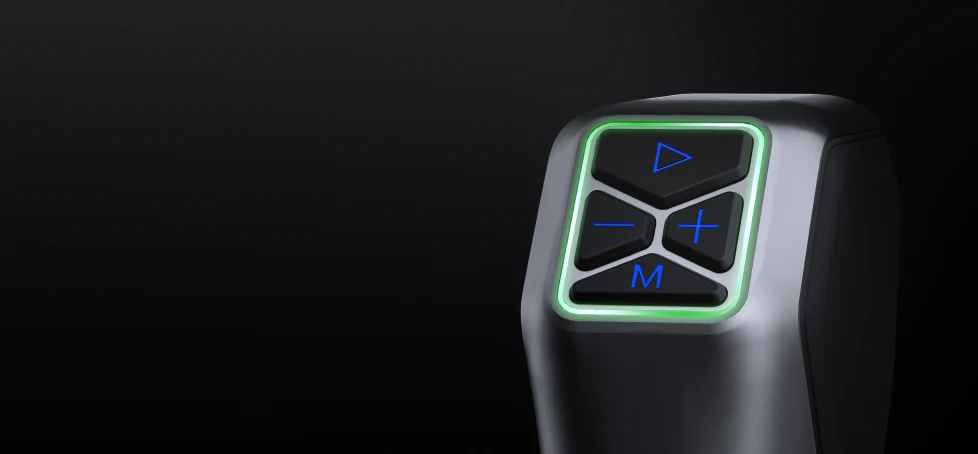

Easy to Control

4 Buttons

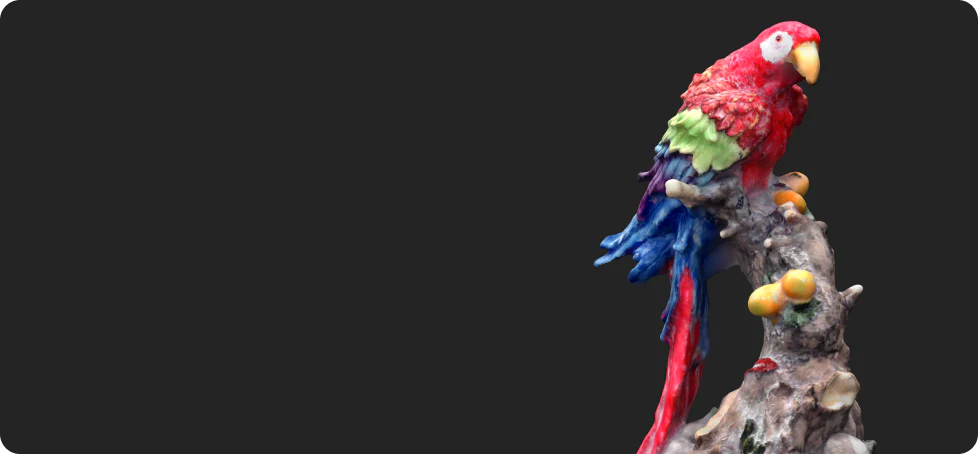

HD RGB Camera

Create Vibrant 3D Models

Add to Wish List

Specification

Name	MetroX
Scanning Type	Handheld and Desktop
Technology	Multi-line Laser Scan and Full-field Structured Light Scan
Scannable Object Size	Small to Medium
Single-frame Precision, up to	0.01 mm
Single-frame Accuracy, up to	0.02 mm
Volumetric Accuracy	0.025 mm + 0.05 mm × L (m) L is the length of the object
Working Distance	200 ~ 400 mm
Single Capture Area at Nearest Distance	160 x 70 mm at 200 mm
Single Capture Area at Furthest Distance	320 x 215 mm at 400 mm
Angular Field of View (H x V)	43 × 33°
Maximum Scan Volume	1 × 1 × 1 m
Special Object Scanning	Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
RGB Camera Resolution	2 Megapixels
Color Scanning	Only in Auto Turntable Mode
Tracking Methods	Feature, Marker, Global Marker
Minimum PC Requirements	macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16GB Windows CPU: Intel i7 12th Gen or AMD Ryzen 7 5800 RAM ≥ 32GB GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)
Compatible Operating Systems	Windows 10/11 (64-bit), macOS 11.0 or better
Built-in Chip Computing	Depth Map Computing
Buttons	4
Outdoor Scanning	No
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Fused Point Distance, up to	0.05 mm
Connector Type	USB Type-C
Power Requirements	DC 12V, 3A
3D Light Source	14 Blue Cross Laser Lines 7 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light
Dimensions (L x W x H)	209 × 88 × 44 mm
Minimum Scan Volume	10 × 10 × 10 mm
Scanning Speed, up to	Multi-line Blue Laser: 800,000 Points/s Full Field Blue Light: 7,000,000 Points/s
Depth Camera Resolution, up to	2 Megapixels
Supported Accessories	Dual-axis Turntable, Marker Block Kit
CPU	4 core ARM, 2.0 GHz3w3w
Fill Lights	12 Blue LEDs
Recommended PC Requirements	macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GB Windows CPU: Intel i9 13th Gen / i7 14th Gen / i5 14th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better
