Description

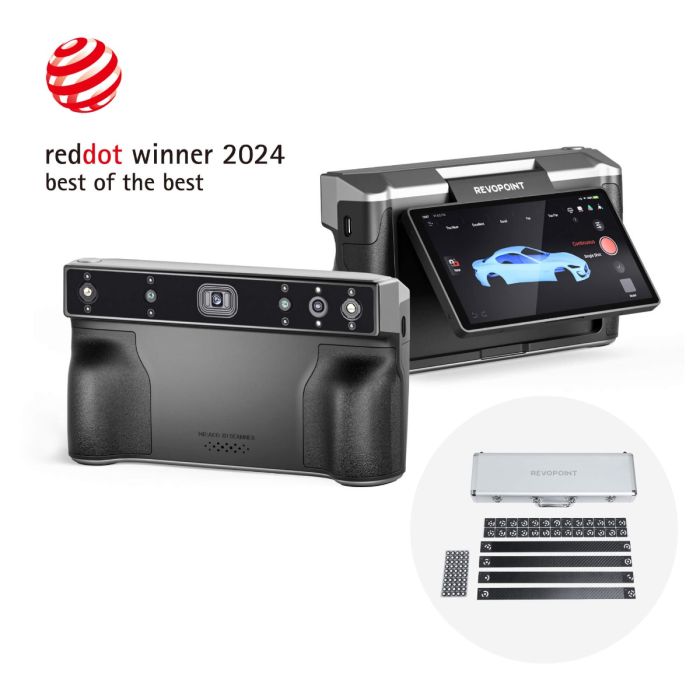

MIRACO Plus 3D Scanner First All-in-one Photogrammetric Metrology and Scanning

The Revopoint MIRACO Plus is the world's first cost-effective all-in-one 3D scanner with photogrammetric metrology capabilities. With its Photogrammetric Metrology Kit (PMK) and improved accuracy and speed, the MIRACO Plus 3D Scanner expands the Red Dot award-winning MIRACO series with metrology-grade large object-capturing capabilities.

About

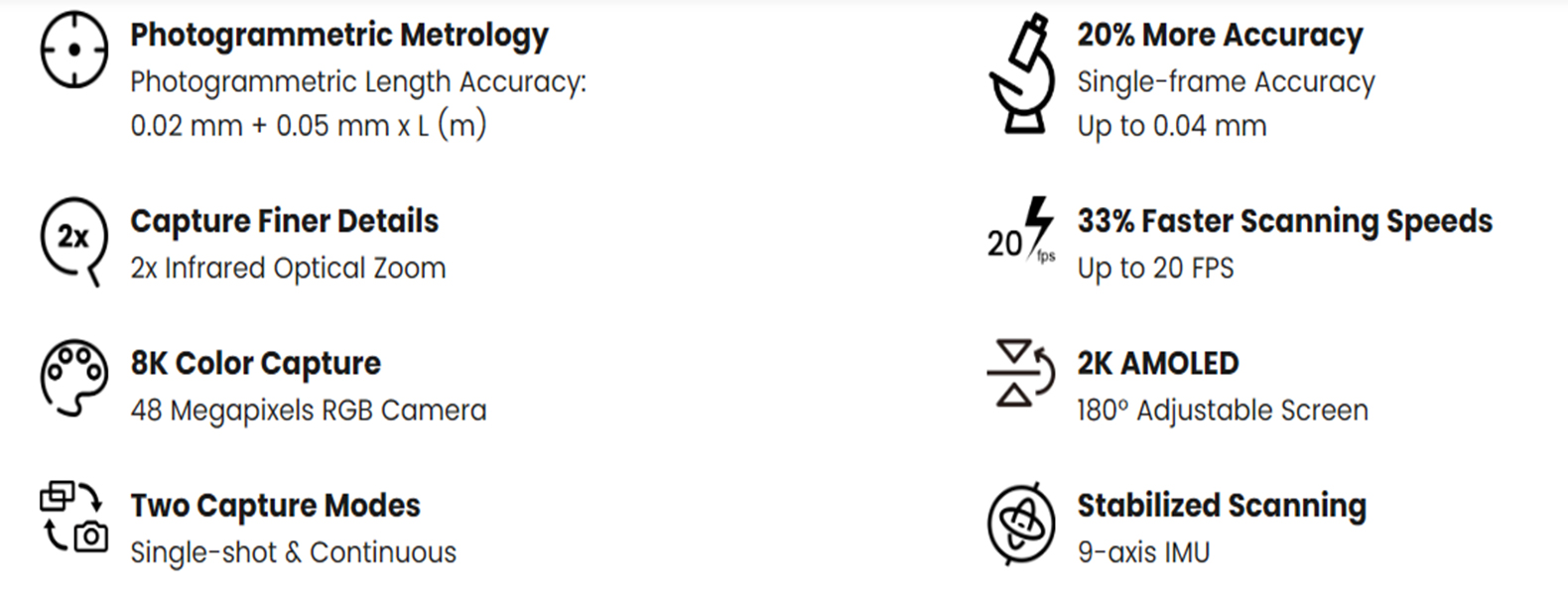

Small to Large All-in-one Scanning
Single-frame Accuracy Up to 0.04 mm
Photogrammetric Length Accuracy 0.02 mm + 0.05 mm x L (m)
Fast Scanning Speed Up to 20 FPS
2x Infrared Optical Zoom
Single-shot & Continuous Modes

Metrology-grade Large Object Capture!

Photogrammetric Length Accuracy

Better Accuracy

The MIRACO Plus now boasts 20% greater accuracy for capturing finer details, guaranteed within 20 microns by its high-precision calibration board.

Efficient Workflows

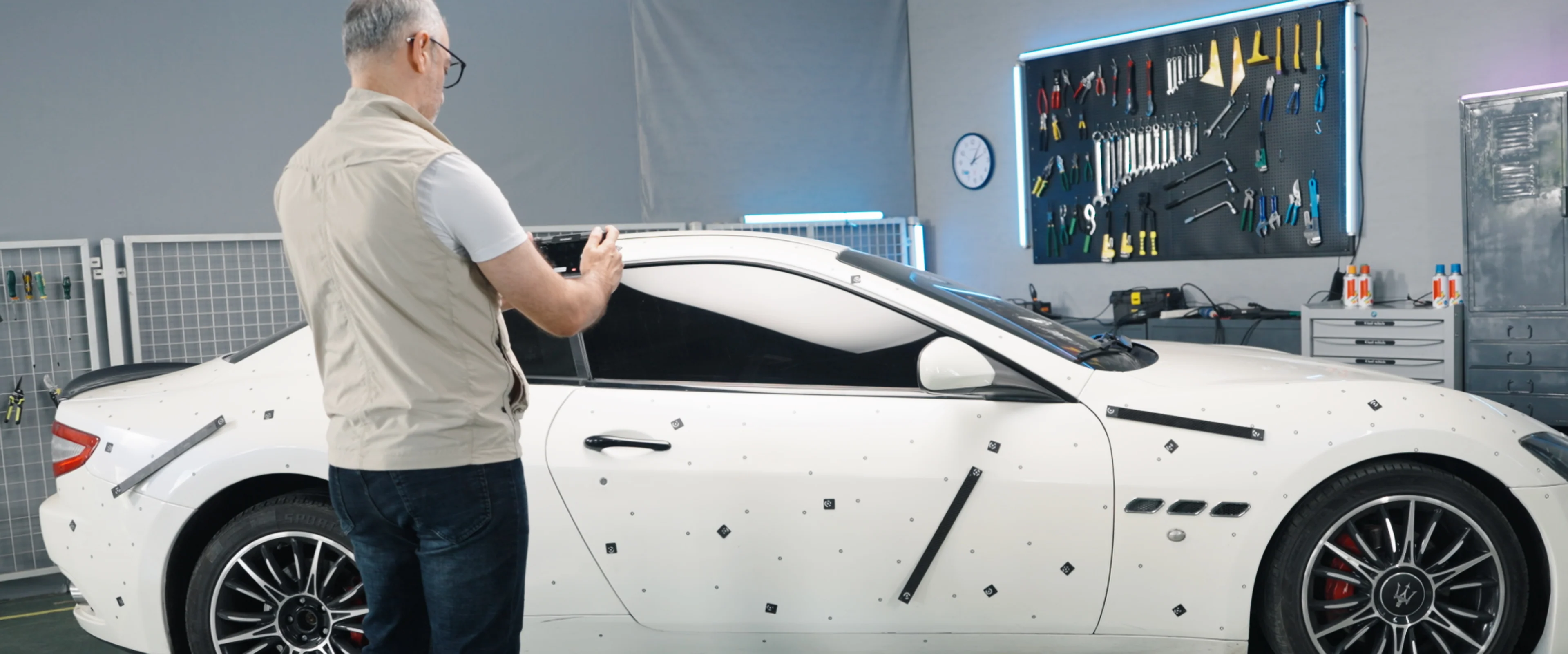

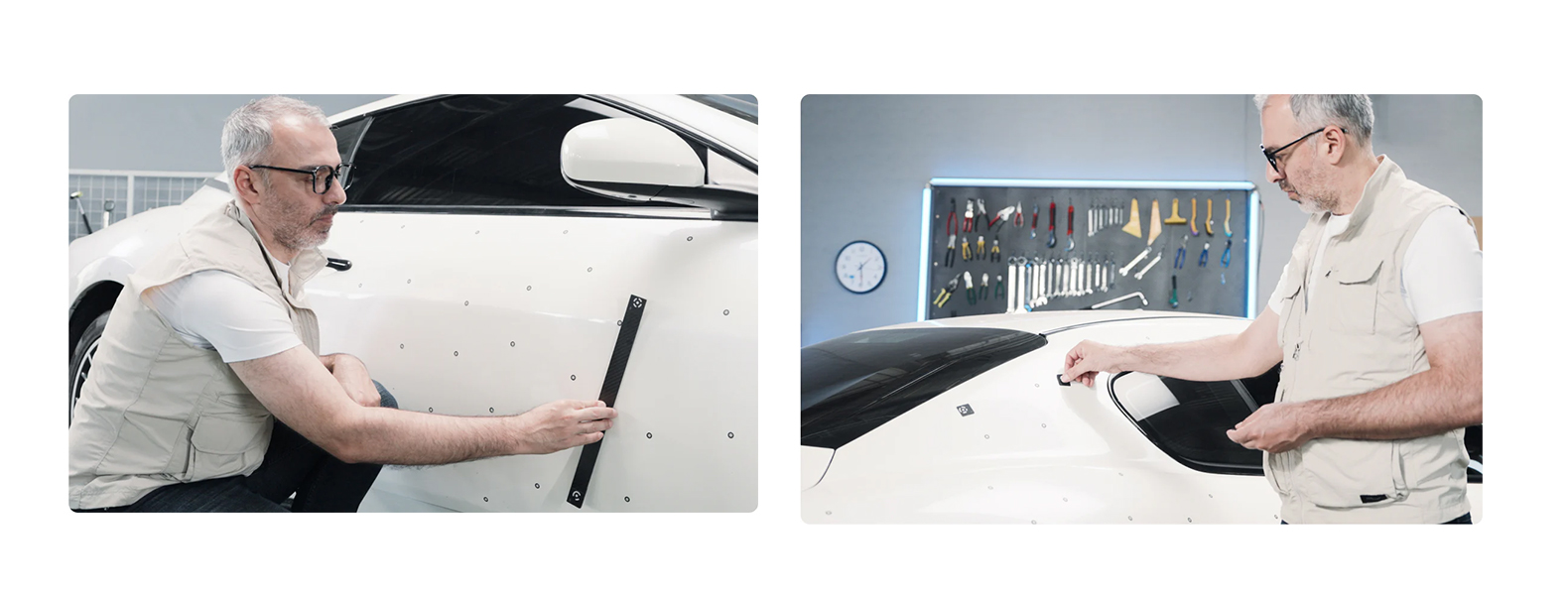

STEP 1 ： Prepare

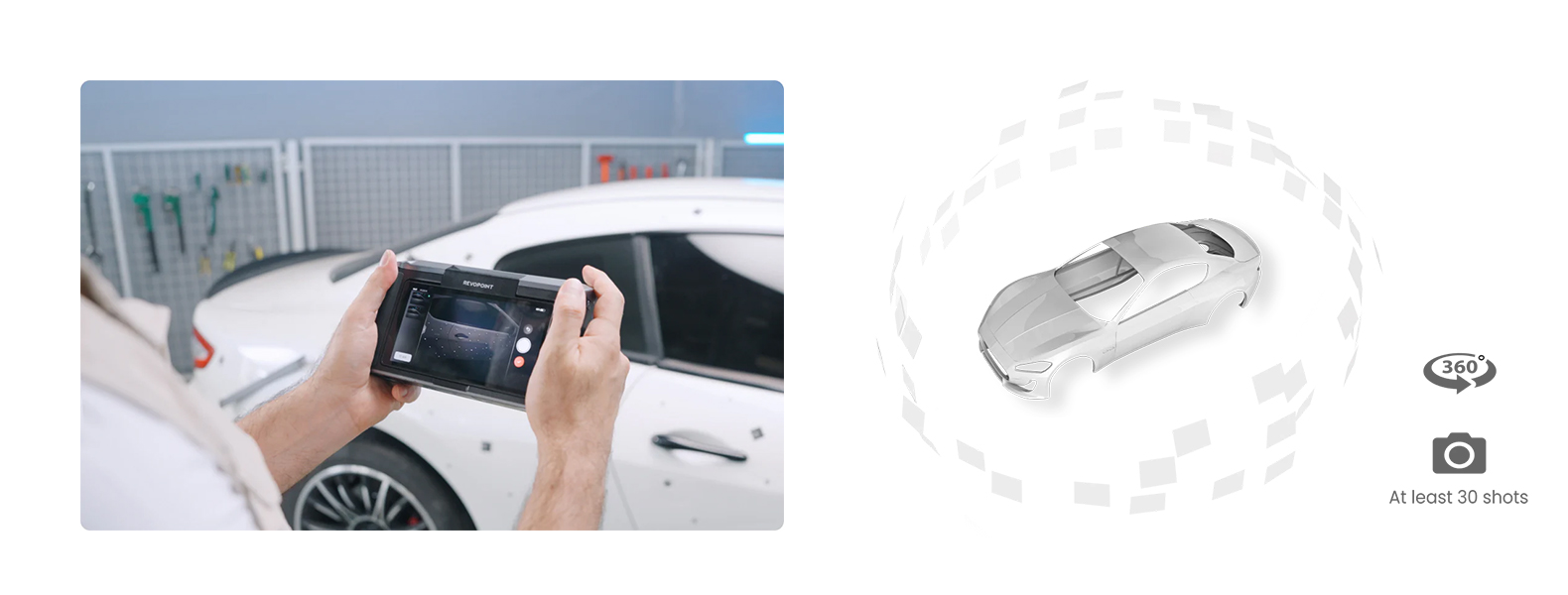

STEP 2 ：Shoot

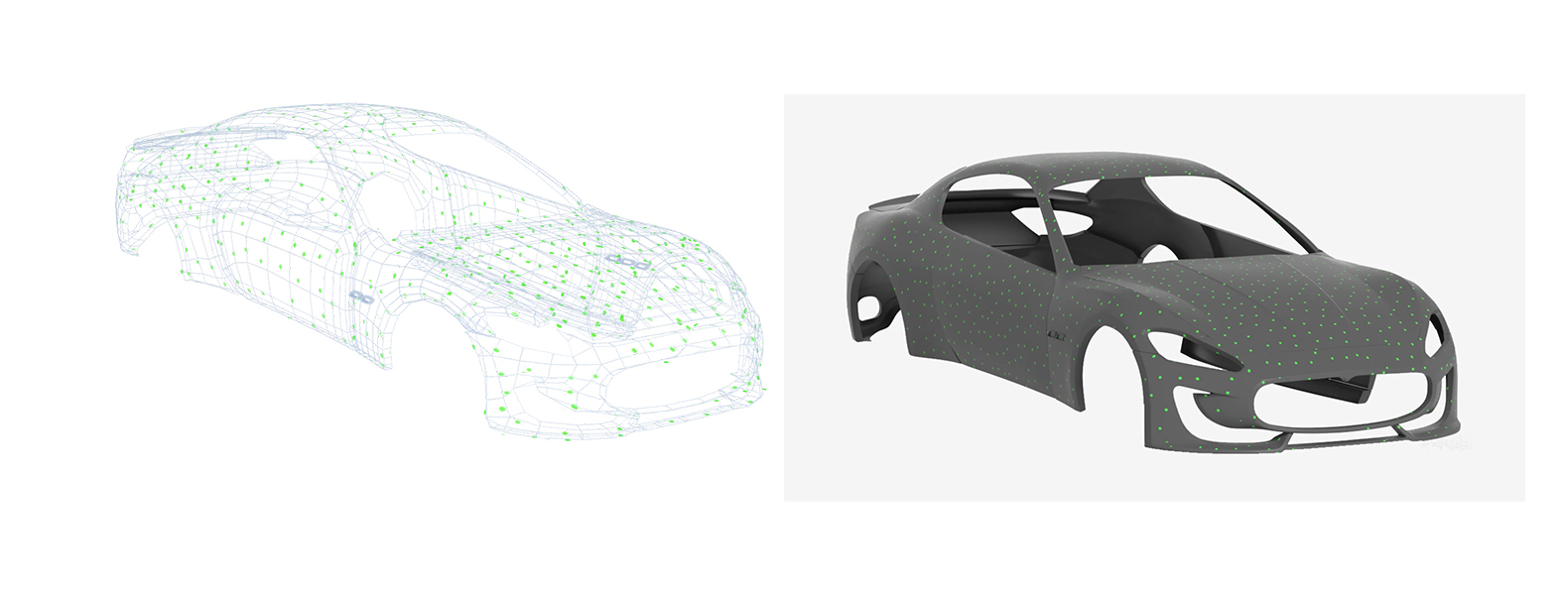

STEP 3：Calculate and Capture Point Clouds

STEP 4：Process and Export

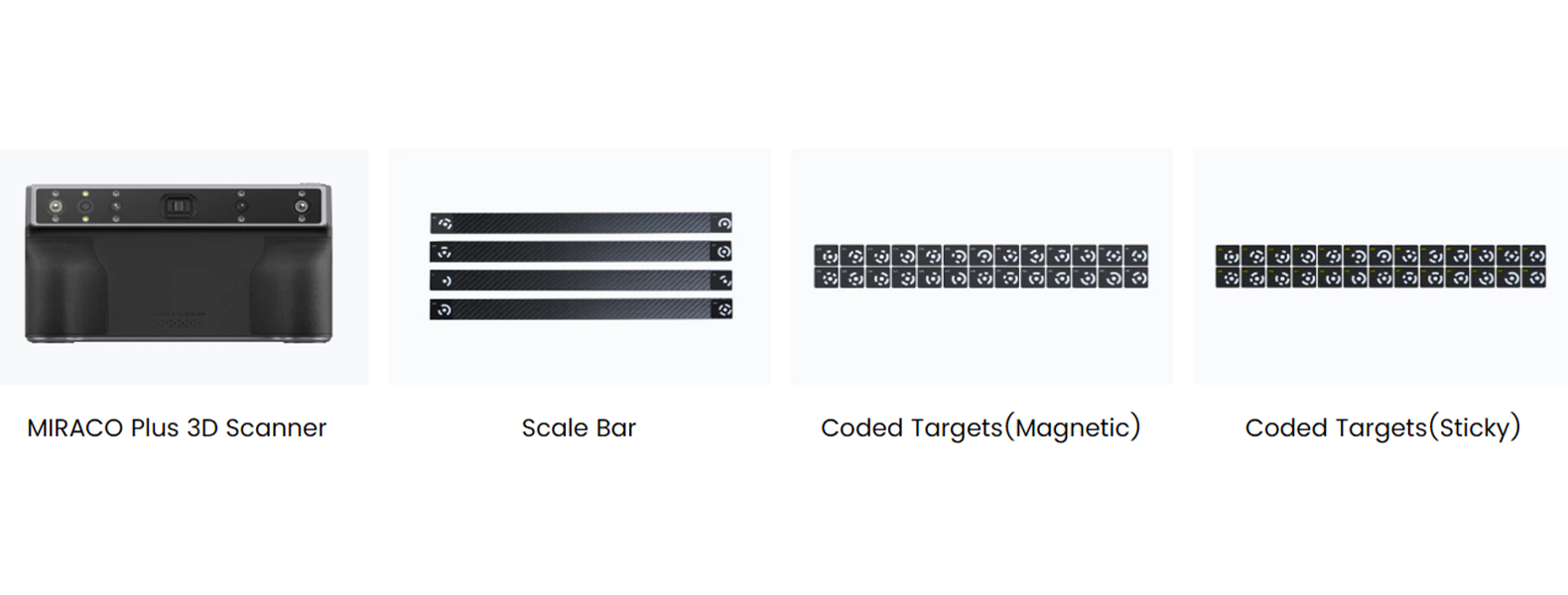

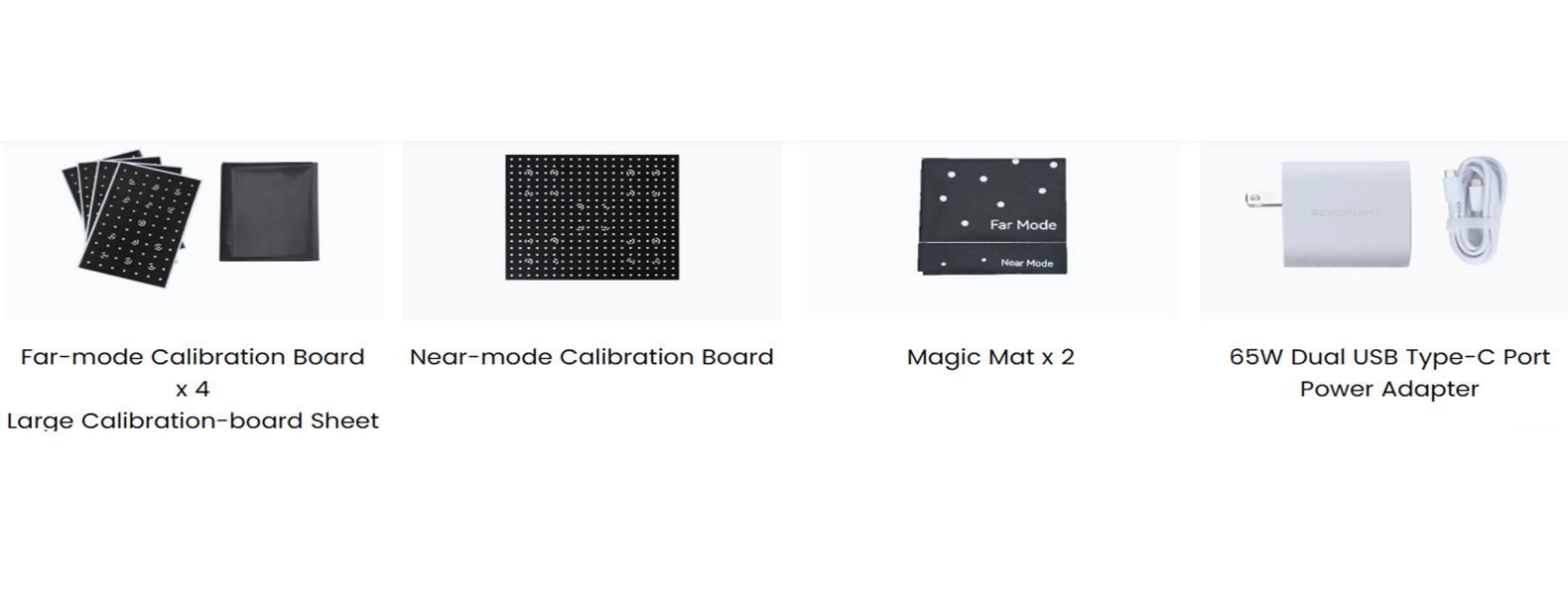

What’s in the Box?

Add to Wish List

Specification

Product Name	MIRACO Plus 3D Scanner
Single-frame Accuracy	up to 0.04 mm
Photogrammetric Length Accuracy	28 x 53 mm at 100 mm 0.02 mm + 0.05 mm x L (m) （L is the maximum measuring distance in meters.）
Internal Storage	256 GB eMMC
Scanning Speed	Up to 20 fps
Single Capture Area at Nearest Distance	28 x 53 mm at 100 mm
Scannint Type	Standalone Handheld and Desktop, and photogrammetric metrology
Minimum Scan Volume	10 x 10 x 10 mm
Auxiliary Lighting	Infrared Fill Lights, White Flash LEDs
CPU	8 core ARM A76 , 2.4 GHz, Mali G52 GPU
Scanner Weight	750 g
Tracking Methods	Feature, Marker, Global Marker
Connector Type	USB Type-C
Wi-Fi	6
Battery	Internal 5000 mAH
Memory (RAM)	32 GB DDR4 Memory
Working Distance	100 ~ 1000 mm
Bluetooth	2
RGB Camera Resolution	48 Megapixels
Supported Accessories	Large Turntable, Dual-axis Turntable, Large Calibration Board for MIRACO, Power Bank Kit, Photogrammetric Metrology Kit
Light Type	Class 1 Infrared Light (Eye Safe)
