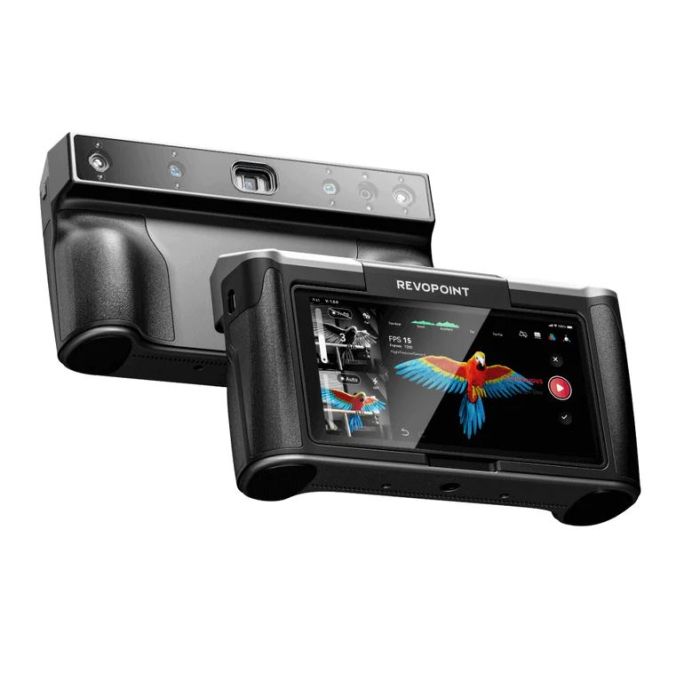

Revopoint MIRACO Pro 32GB 3d Scanner

Name: Revopoint MIRACO Pro 32GB 3d Scanner
Brand: Revopoint
SKU: R-REV-MIRACO-32
Price: 1599.00 USD

SKU

R-REV-MIRACO-32

Manufacturer No

REV-MIRACO-32

Rating:

80 % of 100

$1,599.00

Quantity:

Description

MIRACO’s Key Features

Up to 0.02 mm precision, 0.05 mm accuracy

Up to 15 fps Scanning Speeds

8K Color Capture

Single-shot & Continuous

180° Adjustable Screen

9-axis IMU

Up to 2 Hours of Scanning

Only 750 g Light & Standalone

Two Capture Modes

1. Precise Tracking
2. High Accuracy
3. Minimal Point Cloud Overlap
4. Easier scans in hard-to-maneuver environments
1. Up to 15 FPS Scanning Speeds
2. Near and Far Mode Scanning

No Cables, No PC Needed

Capture and Post-process Directly

Perform fusion, meshing, and editing without transferring your project to a PC
Simple Project Transfers

With MIRACO’s lightning-fast Wi-Fi
6 or USB Type-C 3.1 connection
Screen Mirroring

Connect MIRACO to TVs or monitors
Check models or present

Your Scanning Portal

Also Included

Tripod

Mini Turntable, Sample Bust &Turntable Topper

Near-mode Calibration Board

Magic Mat x 2

Wrist Strap

65W Dual USB Type-C Port
Power Adapter

Markers

Scanner Bag

Specification

Product Name	Revopoint MIRACO Pro 32GB
Technology	Quad-camera Infrared Structured Light
Single-frame Accuracy	up to 0.05 mm
Single Capture Area at Nearest Distance	28 x 53 mm at 100 mm
Single Capture Area at Furthest Distance	975 x 775 mm at 1000 mm
Minimum Scan Volume	10 x 10 x 10 mm
Maxmium Scan Volume	4000 x 4000 x 4000 mm
Working Distance	100 – 1000 mm
Screen	6” 2k AMOLED Touch Screen
3D Light Source	Class 1 Infrared Light
Storage	256 GB eMMC
Memory (RAM)	16 GB or 32 GB DDR4 (32GB only in MIRACO Pro)
Scanner Weight	750 g
Dimensions（L x W x H）	200 x 50 x 110 mm
Battery Capacity	Internal lithium Battery 5,000 mAh, supporting up to 2-hour continuous scanning
CPU	8-core CPU，2.4 GHz
Tracking Methods	Feature , Marker
Connector Type	USB Type-C
Wi-Fi Type	Wi-Fi 6
Compatible Systems	Windows 10/11 (64-bit), macOS
