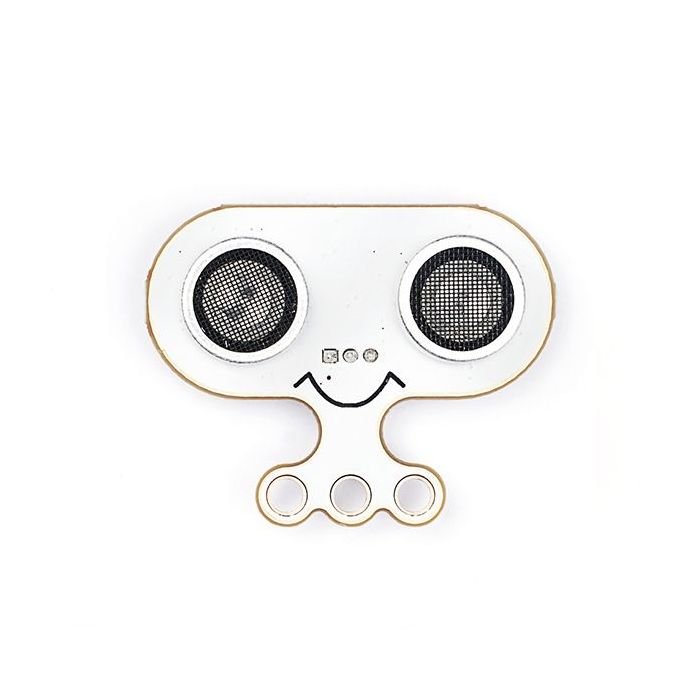

Sonar:bit for micro:bit Ultrasonic Sensor Distance Measuring 3V/5V

See Sale Pricing at Checkout
SKU
Elecfreaks_EF04089
Manufacturer No
EF04089
Rating:
0 % of 100
$8.90
Add to Wish List

Manufacturer ID -EF04089

ELECFREAKS offers quality Octopus Sonar:bit which is a distance sensor ultrasonic, it can output stable and accurate measurement data and the error is only Ā±1cm

Description

Sonar:bit is an ultrasonic module with a 3-5V working voltage. It is available to be used in a 3.3V or 5V microcontroller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with Ā±1cm tolerance only. You can use this module for occasions like short-distance measurement, smart cars, robots, micro:bit and Arduino teaching, etc.

DIMENSION

FEATURES

  • Input voltage:3V~5V
  • Enable to drive micro:bit or Arduino directly.
  • Standard 3-wire GVS connector, which occupies 1 IO port only.

DEFINITION OF PINS

INTRODUCTION OF MAJOR COMPONENTS

Transmitter

The transmitter is used to send ultrasonic signals.

Receiver

The receiver is for collecting ultrasonic signals.

MCU

This is the master chip of sonar:bit.

Chip for Sending Signal

This chip is used to drive the transmitter to send out ultrasonic signals.

Chip for Receiving Signal

This chip is used to receive and process ultrasonic echo signals as well as give feedback to the master chip.

G-V-S Port

G-V-S port allows outer devices control.

QUICK START

Hardware Connection

Connect sonar:bit to P2 port on sensor:bit and connect micro:bit to your computer.
Once completed, you can see the picture below:

RESULT

We can see the distance between sonar:bit and the object is displayed on micro:bit in real-time. The unit is centimeters.

APPLICATION



Specification
Brand Elecfreaks
Manufacturer ID EF04089
Input Voltage DC 3~5V
Measurement Range 4~400cm
Accuracy Tolerance Ā±1cm
Size 40.6mm x 51.06mm
Net Weight 12g
