Visible Ray Geometrical Table Top Optics Set - 28 Pieces

Name: Visible Ray Geometrical Table Top Optics Set - 28 Pieces
Brand: Eisco Labs
SKU: Eisco_PH0615B
Price: 115.17 USD

SKU

Eisco_PH0615B

Manufacturer No

PH0615B

Eisco Labs

Rating:

80 % of 100

1 Reviews Add Your Review

$115.17

Quantity:

Add to Wish List

This is a special order item and delivery can take up to 90 days. Please request a quote for lead time.

Manufacturer ID - PH0615B

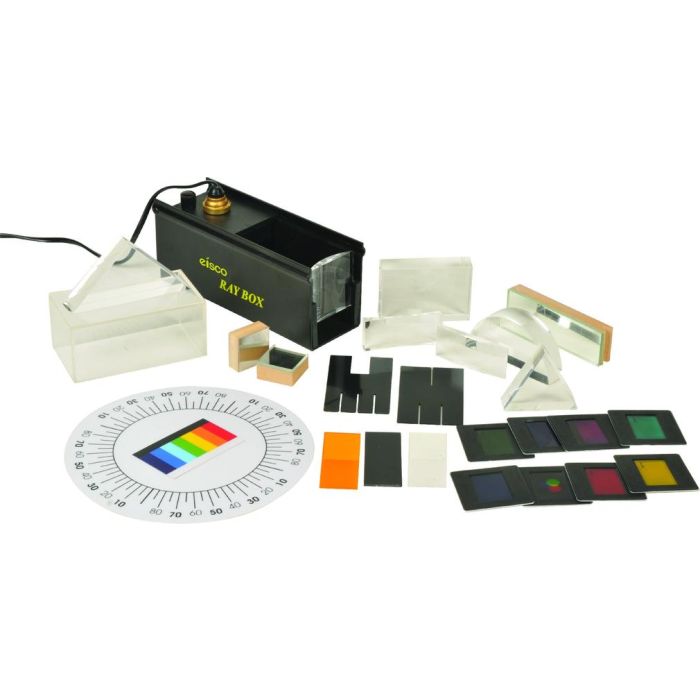

Set includes (1) Ray box, (3) Ray slit cards to make light rays, (1) Open vessel to add fluids of different refractive indices, (1) 360 degree optical bench disk, (2) Acrylic triangular blocks, (1) Acrylic Semi Circle Block, (1) Rectangular Block, (1) Extra Bulb for ray box, (8) Various color filters, (3) Mirrors, (1) Convex lens, (1) Double convex lens, (1) Double Concave lens, (1) Color index card, (2) Half Frosted slides

Same principles as a Hartl optical disc system, but resting horizontally on any flat surface

Used for demonstrating reflection, refraction, dispersion, ray tracing, geometrical optics, convergence, divergence, collimation, refractive index, etc.

Enough components to do over 30 experimental geometrical optic set ups

Set does not include instructions or power source, power source needs to be 12V AC/DC, 1.5A. Recommended Eisco power sources: PH1323B or PH0651B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

This system is modeled after the Hartl Optical Disc system, but does not need to be mounted vertically as it can rest horizontally on any flat surface. The ray box produces a variety of different thickness rays and number of rays which can then be created across the bench top disc with different optical components in the center to measure angles of refraction, distances, etc. Set includes (1) Ray box, (3) Ray slit cards to make light rays, (1) Open vessel to add fluids of different refractive indices, (1) 360 degree optical bench disk, (2) Acrylic triangular blocks, (1) Acrylic Semi Circle Block, (1) Rectangular Block, (1) Extra Bulb for ray box, (8) Various color filters, (3) Mirrors, (1) Convex lend, (1) Double convex lens, (1) Double Concave lens, (1) Color index card, (2) Half Frosted slides
