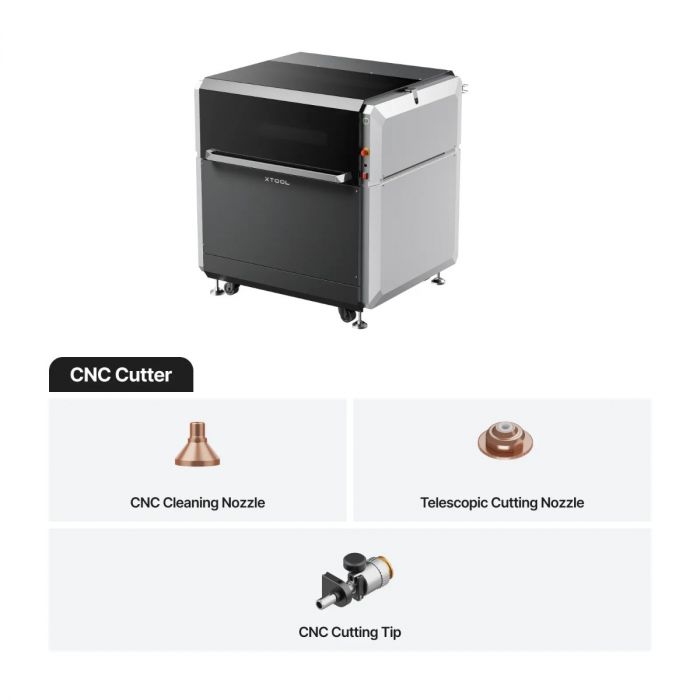

xTool Metal CNC Cutter
$8,999.00
Description
In the Box
Specification
|
Processing Mode
|
CNC Cutting/CNC Rust Removal & Cleaning
|
|---|---|
|
Cutting Thickness
|
Up to 0.39 in (10 mm) with xTool MetalFab Laser Welder 1200W Up to 0.31 in (8 mm) with xTool MetalFab Laser Welder 800W |
|
Working Area
|
24.02 × 24.02 in (610 × 610 mm) |
|
Pass-Through Size
|
24.02 × ∞ in (610 × ∞ mm) |
|
Max. Working Speed
|
15.75 ips (400 mm/s) |
| Motion Accuracy | ± 0.0039 in (± 0.1 mm) |
|
X/Y Axis Max Speed
|
0.1G |
|
X-Axis Travel
|
24.02 in (610 mm) |
|
Y-Axis Travel
|
24.02 in (610 mm) |
|
Z-Axis Travel
|
3.54 in (90 mm) |
|
Exhaust Fan Capacity
|
620m2800RPM (± 10%) |
| Safety Certification | Class 4 Laser Safety |
| Rated Power | 250W |
| Input Voltage | 100 - 240V, AC 50/60Hz |
|
Full-load Current
|
MAX 2.5A |
|
Storage Temperature
|
10 °F - 140 °F (-10 °C - 60°C) |
| Operation Temperature | 0 °F - 104 °F (0 °C - 40 °C) |
|
Machine Dimensions
|
46.26×45.55×48.43 in (1175 x 1157 x 1230 mm) |
| Machine Weight | 150kg |
