Force on Conductor in Magnetic Fields Apparatus - Strong U-Shaped Magnet, 2 Brass Rails & 4mm Socket Terminals in a Wooden Frame - Eisco Labs

SKU

Eisco_PH0845

Manufacturer No

PH0845

Eisco Labs

Rating:

80 % of 100

1 Reviews Add Your Review

$34.83

Quantity:

Add to Wish List

This is a special order item and delivery can take up to 90 days. Please request a quote for lead time.

Manufacturer ID - PH0845

Demonstrates the force experienced by a current-bearing conductor in a magnetic field, and the direction of this force with relation to field and current directions

Strong U-Shaped Magnet, 2 Brass Rails & 4mm Socket Terminals. Includes a brass axle, with plastic discs

Apparatus mounted in a wooden frame

When current is passed through the light rod, the rod will move along the rails, propelled by the electromagnetic force

Requires an adjustable, low voltage unit (up to 5 amps), conducting leads and plotting compass (not included)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

This apparatus is designed to demonstrate the force experienced by a current-bearing conductor in a magnetic field, and the direction of this force, with relation to field and current directions. The observations of the directions of motion, and knowledge of the directions of current and field, can be used to confirm Fleming's rule.

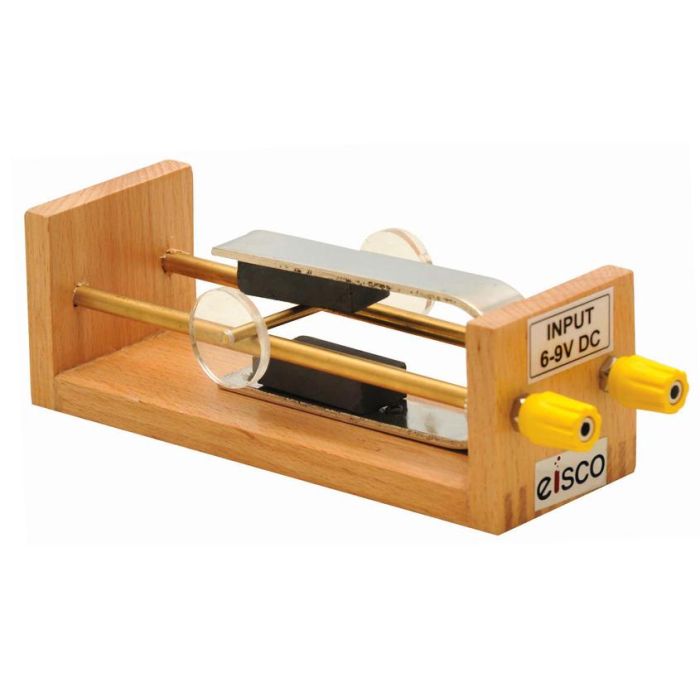

Two face-magnetized magnets are held in position on opposite inside surfaces of a steel plate bent into a horseshoe shape. These magnets provide a strong vertical magnetic field. Two brass horizontal rails, give a conducting path to the light brass rod axle resting horizontally on them. Apparatus is mounted inside of a wooden frame measuring 7.75" long, 2.3" wide and 2.5" tall. Fitted with two, 4mm socket terminals.
Required, but not included: Adjustable, low voltage unit (6-9V DC, up to 5 amps), Conducting leads & Plotting Compass
