Micro Fuel Cell Science Kit

Micro Fuel Cell Science Kit - product overview

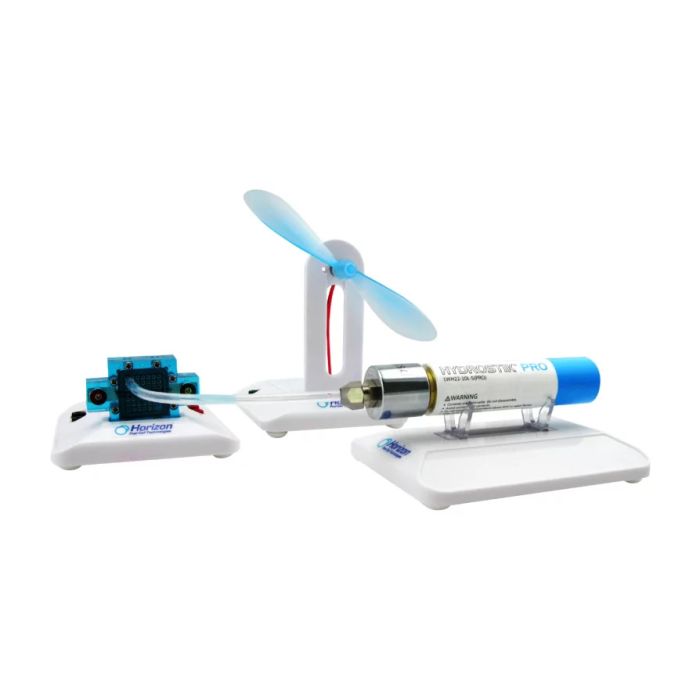

Explore the future of energy storage with Horizon’s Micro Fuel Cell Kit. Power a mini turbine by converting solid state hydrogen in the HYDROSTIK PRO metal hydride cartridge into electrical energy via a Horizon PEM fuel cell. Kids can see the effect as the hydride slowly cools and releases hydrogen into the fuel cell. The process is a model for all micro fuel cell systems— a working example of solid hydrogen storage that can lead to many interesting and creative application ideas.

You will need a source of hydrogen like the Hydrofill PRO to charge the supplied Hydrostik PRO cartridge with hydrogen.

Why Fuel Cells and Hydrogen?

Fuel cells can be thought of as alternative energy devices. They convert chemical energy into electrical energy. Hydrogen fuel cells do this very cleanly, with no toxic emissions, and with a better efficiency. Fuel cells do not generate energy out of thin air. They use hydrogen. Hydrogen is an outstanding carrier of energy. Hydrogen is non-toxic, renewable, easily obtained, and packed with energy. When it combusts with oxygen, it turns into water. This water can again be split into hydrogen and oxygen via electrolysis. The generated hydrogen can be combusted once again, thus undergoing a limitless cycle without toxic emissions. With a fuel cell, you can convert hydrogen into electric current without combustion.

Fossil fuels are converted into usable energy through combustion. The energy released during combustion is inherently difficult to capture and inefficient. It also produces carbon dioxide, which cannot easily be converted back into a usable fuel. A fossil fuel combustion engine at a power plant is only about 30 to 40% efficient. This means it coverts only 30 to 40% of the energy in the fossil fuels to usable energy (electricity). Engines in a car are even less efficient, and reach the level of 15 to 20% of efficiency. Where does the rest of the energy go? It escapes as heat, vibration, and noise.

On the other hand, fuel cells can operate at 40 to 65% efficiency. This means that they can convert 40 to 65% of the energy contained in hydrogen into electricity.

Curriculum

What is included in the horizon energy curriculum? The lab equipment is just the beginning. We’ve built the horizon energy curriculum to provide teachers with multiple resources for engaging their students.

• E-Book

Chemistry Concepts
Energy, Hydrogen Generation, Reactions, Redox Reactions

Physics Concepts

Classical Mechanics, Energy, Ohm's Law, Power (Electric)

Earth Science Concepts

Climate change, Renewable Energy, Human Impact

Datasheet

• FCJJ 44 Datasheet

User Manual

• FCJJ-44 User Manual French
• FCJJ-44 User Manual
• FCJJ-44 User Manual Dutch

Micro fuel Cell Science Kit - FAQ


1. What are the refill options for HYDROSTIK PRO cartridges?

a. HYDROSTIK PRO can be recharged using Horizon’s HYDROFILL cartridge refilling solution.

b. You may contact your local Horizon service provider for HYDROSTIK PRO refill support at [email protected]

c. If needed HYDROSTIK PRO can be disposed after use, they are fully recyclable and do not contain any harmful materials.

2. I want to purchase more HYDROSTIK PRO Metal Hydride Cartridges, should I have received a (gas pressure) regulator of any kind with it?

No, pressure regulators are not included as standard you will need to order those as well. You can purchase one online visiting the Horizon Online Store or contact [email protected]

3. I would like to exchange my cartridge for a different size, can we do this at any Horizon related outlet?

No, for now we only distribute a single size HYDROSTIK PRO Metal Hydride Cartridge.

4. Can I take Metal Hydride cartridge HYDROSTIK PRO abroad?

No more than two spare metal hydride cartridges may be carried by a passenger in carry on baggage, in checked baggage, or on the person.

5. Does the HYDROSTIK PRO lose its energy content over time, if I don’ t use it?

Hydrogen remains stored as a hydride in the HYDROSTIK PRO. The cartridge will not lose its energy or latent hydrogen content if the cartridge is not being used.
