xTool D1 Pro Red-20W

Manufacturer No
80 % of 100
Add to Wish List

Manufacturer ID -P1030296

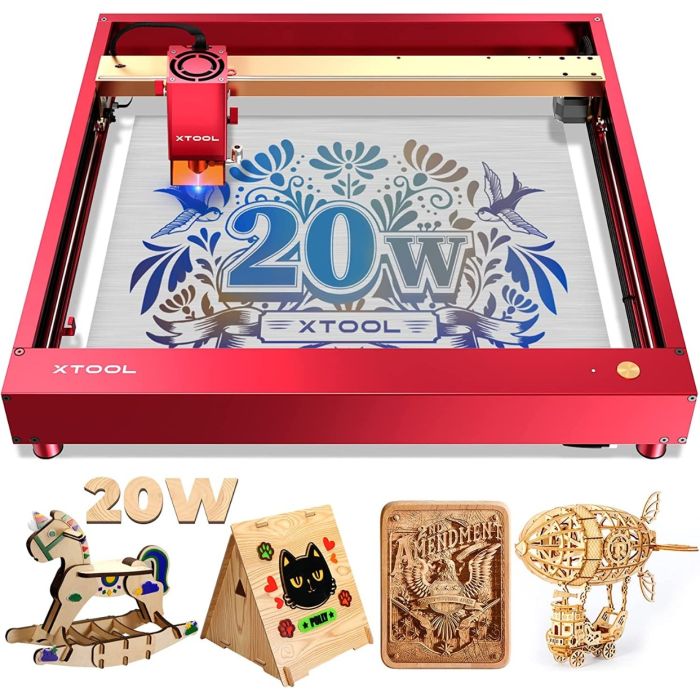

The xTool D1 Pro 20W is a highly accurate and fast cutting and engraving diode laser machine. This DIY kit featuring a robust aluminum open-frame construction and stainless steel rollers and linear rails is easily assembled thanks to the detailed instructions. The D1 Pro 10W features a dual laser technology that combines two laser beams into one spot. The compressed spot of 0.08 x 0.06 mm has higher power and faster speed. The power of the xTool D1 Pro 10 W dual laser is equivalent to a 15 W single laser of a conventional cutting machine. A 10-mm wood or a 5-mm acrylic plate can be cut through in one pass.


Compatible materials

The xTool D1 Pro can work with a wide range of materials. The blue laser module can be used to cut most kinds of wood, including plywood and composite, paper and cardboard, cork, acrylic, leather, and others. All these materials can be engraved as well. Besides, the blue laser can engrave coated metals, stainless steel, plastic, marble, stone, ceramic tiles, glass, and more. You can find the optimal material settings on the manufacturer’s website.

Working area

The working area of 430 x 400 mm allows you to implement large-scale design projects or to engrave multiple smaller patterns at a time which can be extremely helpful for small businesses.

Machine controls

On the right side of the machine frame there is a power and a USB port and a power switch. On top of the front panel you will find a start / stop button and a light status indicator.The machine is equipped with an easy and convenient focus adjustment mechanism using the lever on the laser module. Besides, you can further lower the laser head when cutting thick materials to achieve the optimal focal length and the maximum cutting capacity of the laser.


The xTool D1 Pro comes with the proprietary xTool Creative Space software. This free software is user-friendly, functional, and allows for firmware updates. xTool Creative Space is compatible with Windows and macOS.

Brand Xtool
Manufacturer No P1030296
Dimensions 321 x 138 x 105 mm
