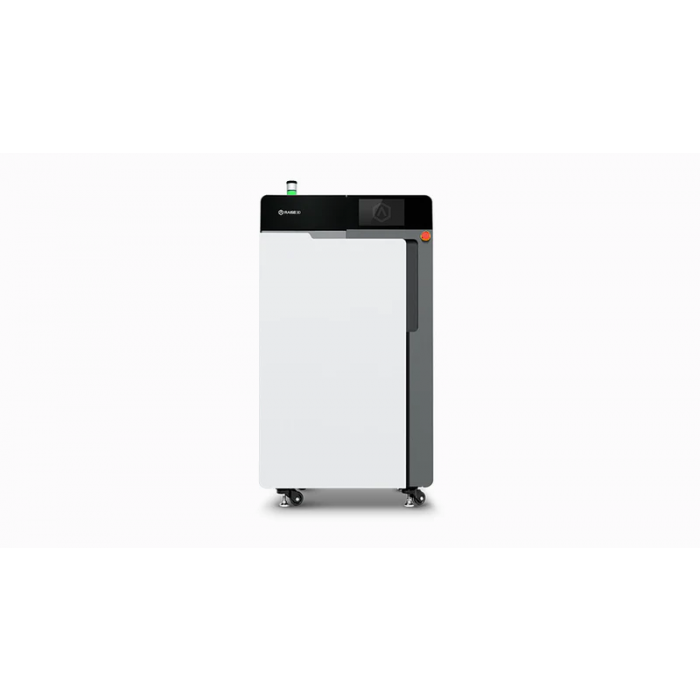

Raise3D RMS220 3D Printer

Raise3D RMS220 3D Printer

Including Raise3D RMS220 3D Printer with Build Unit 220 and one-year warranty.

Raise3D RMS220 Series is a set of powerful selective laser sintering (SLS) production system, optimized for productivity, stability, and easy to use and maintenance. It enables the high speed printing of engineering plastics and composites. When running at full capacity, the max throughput for parts can reach up to 5kg/day, which allows the users to produce end-use parts efficiently.

• Technology: Selective Laser Sintering (SLS)
• Build Volume:  220 × 220 × 350 mm (8.7 × 8.7 × 13.8 inch) / 17 L
• Laser Type: 75 W infrared fiber laser, wavelength 1064 nm
• Printing Speed: 2.2L/h (packing density 20% by weight)
• Max Powder Temp.: 220°C
• Hopper Size: 31.5 L, 40 L if extended with material box
• Maximum Output: 5 kg/ Day*
• *Using PA12 material and standard parameter settings, packaging density is 20% of weight
• Layer Height: 0.05 – 0.40 mm
• Supported Materials: Raise3D PA12 Powder/ Raise3D PA11 Powder/ Raise3D TPU90A White Powder/ Raise3D TPU90A Powder/ Raise3D PA12 GB Powder
• Slicer: ideaMaker
• Input File Formats: STL/ OBJ/ 3MF/ OLTP/ STEP/ STP/ IGES/ IGS
