xTool P2 55W CO2 Laser Cutter and Engraver

Manufacturer No
80 % of 100
Add to Wish List

Manufacturer ID -P1030386

Powerful CO₂ laser cutter for professional use
  • High engraving speed
  • 55W CO₂ laser tube
  • Engraving on curved surfaces
  • Dual 16 MP camera

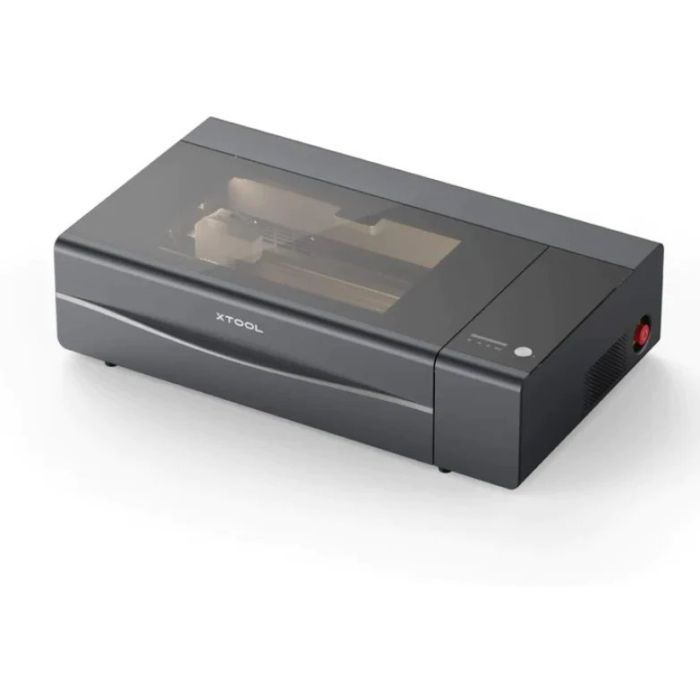

xTool P2 55W CO2 Laser Cutter and Engraver
  • The xTool P2 is a powerful CO₂ laser cutter from the Chinese-based xTool brand, well-known for its diode laser cutters and the CO₂ Laserbox. The latest P2 model is a notable step forward, as the machine has adopted a number of smart features and technologies compared to the rest of the xTool lineup and many competitors in the market.

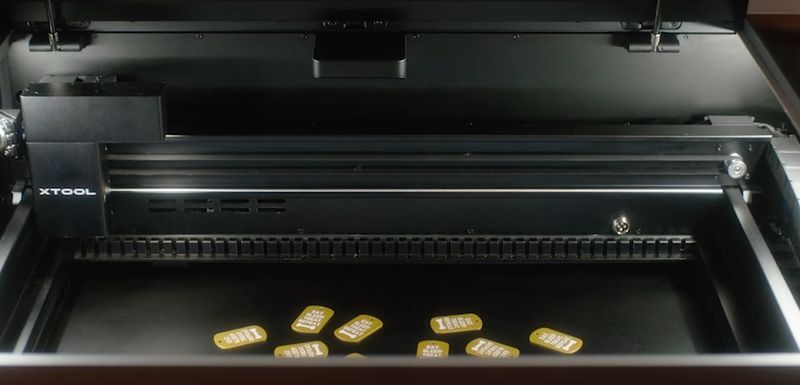

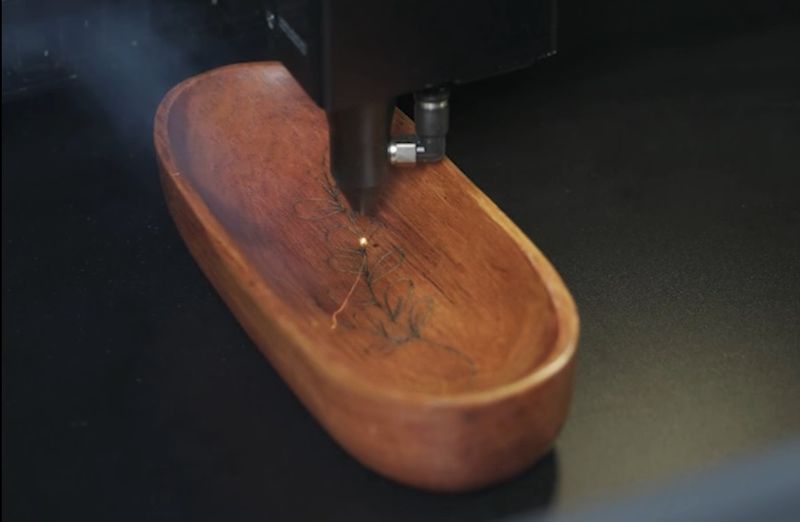

  • The machine features two 16-megapixel cameras, a panoramic one for a live preview of the entire working area, and a close-range camera for a precise view of a particular spot with a vision precision of 0.3 mm. The camera is also used to detect the shapes of multiple similar objects placed on the bed surface, and apply a selected design pattern to all of them, thus allowing fast batch engraving. With the P2, object shapes that can be engraved are not limited to only flat ones. Automatic surface scanning and 3D model building allow it to engrave on curved surfaces with auto focal length adjustment. And the use of an optional rotary attachment further extends creative opportunities with cylinder, sphere, and ring engraving. The machine is equipped with a pass-through slot for processing extra-large objects. With an optional Automatic Conveyor Feeder, the maximum working area can reach 3000 x 500 mm.

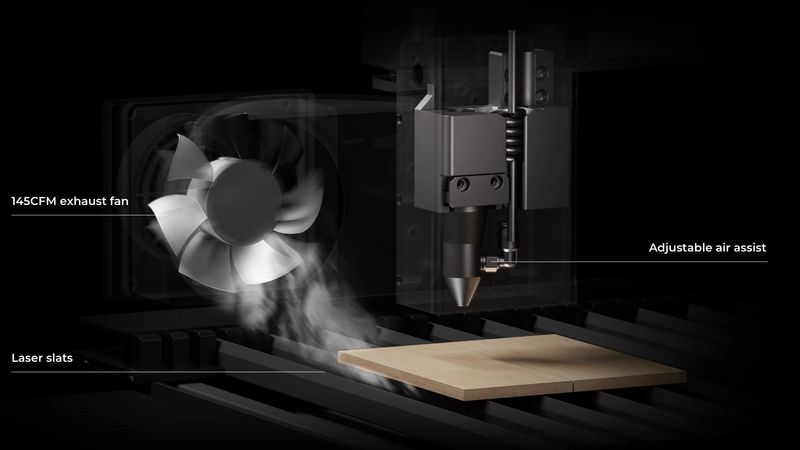

  • The xTool P2 was designed with safety in mind. Its fully enclosed design with a transparent light-filtering lid blocks hazardous laser radiation. The lid automatically locks during operation. The machine’s warning system alerts the user in case of motherboard overheating, cooling system problems, and other abnormal situations, and the E-stop button allows shutting down the device immediately. Equipped with an adjustable built-in air assist and a 145 CFM exhaust fan, the P2 ensures efficient ventilation, and when connected to an optional air purifier, can be used safely in any environment without risk of hazardous fumes.

  • Compatible materials

    The xTool P2 is a highly versatile machine, capable of engraving on a wide range of materials, including paper, wood, acrylic, leather, cardboard, MDF, felt, rubber, bamboo, fabric, glass, ceramic, jade, marble, shale, cement, brick, plated and painted metal. It can also efficiently cut paper, wood, acrylic, leather, cardboard, MDF, felt, and rubber.

  • Working area

    With the working bed dimensions of 680 x 360 mm, the xTool P2 features a working area of 600 x 308 mm, suitable for processing large-sized materials as well as for batch production. The maximum object height of 64 mm can be extended up to 71 mm if you remove the tray. And the optional riser base allows engraving on objects with a maximum height of 215 mm.

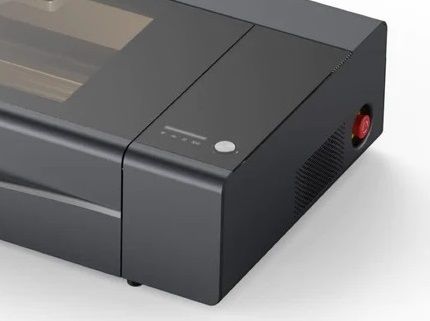

  • The xTool P2 can be connected to a computer via Wi-Fi, USB, or Ethernet. The machine features intuitive controls and a number of automatic functions, such as autofocus adjustment, so even beginners can operate it with ease. There is a Start button on top of the device, and the Emergency stop switch is on the right-side panel.

  • Software

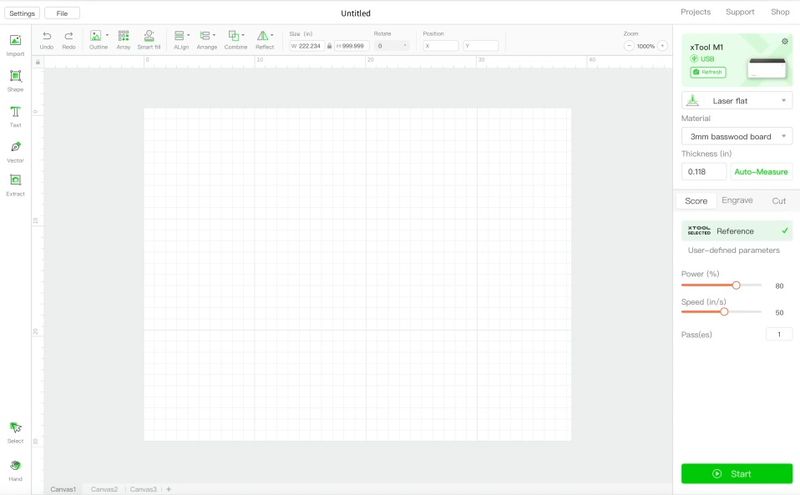

    The xTool P2 works with the proprietary xTool Creative Space software compatible with Windows and macOS. It supports multiple file formats including SVG, DXF, PNG, JPG, and BMP and provides all the necessary tools for image design and editing as well as material parameters and machine control settings.

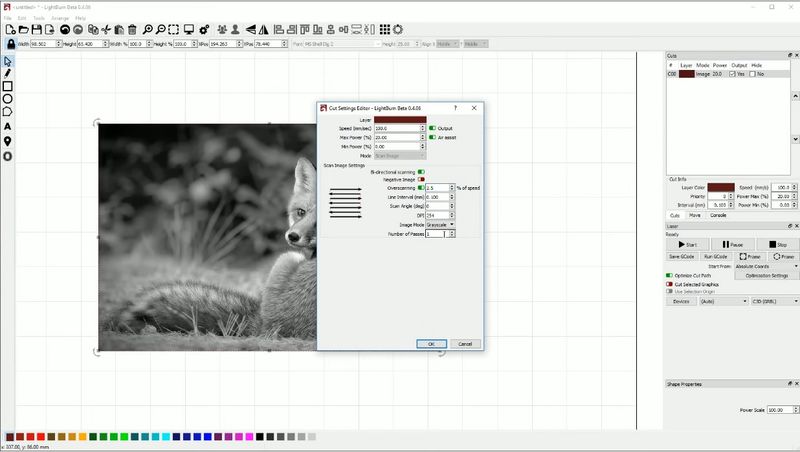

  • For more complicated projects, one can also use the LightBurn software which supports more file formats, such as AI, SVG, DXF, PDF, HPGL, and PLT for vector files and PNG, JPEG, BMP, TIFF, TGA, and GIF for raster images, and offers comprehensive design tools.

  • Applications

    The xTool P2 is an ideal choice for professional makers who want to start or expand their engraving business. The advantages of high speed, precision, large expandable working area and numerous smart features ensure high productivity and unlimited creative possibilities.

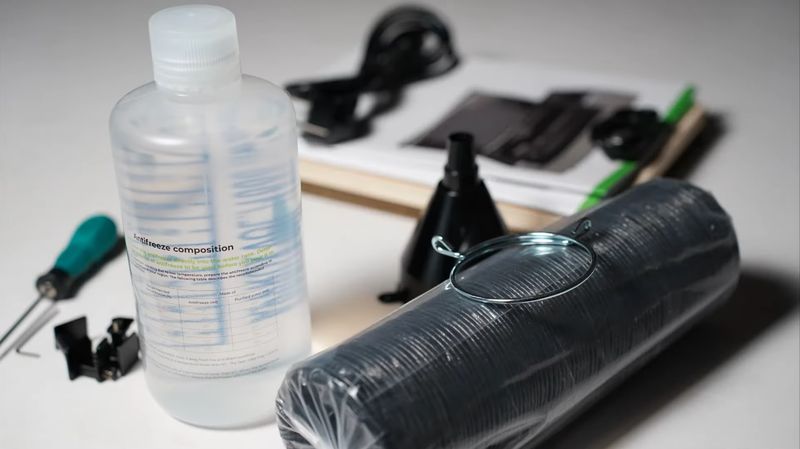

  • What’s in the box

    1. xTool P2 laser cutter.
    2. Exhaust hose
    3. Material samples
    4. Funnel
    5. Antifreeze agent
    6. Tool set
    7. Power cable
    8. USB cable
    9. User guide

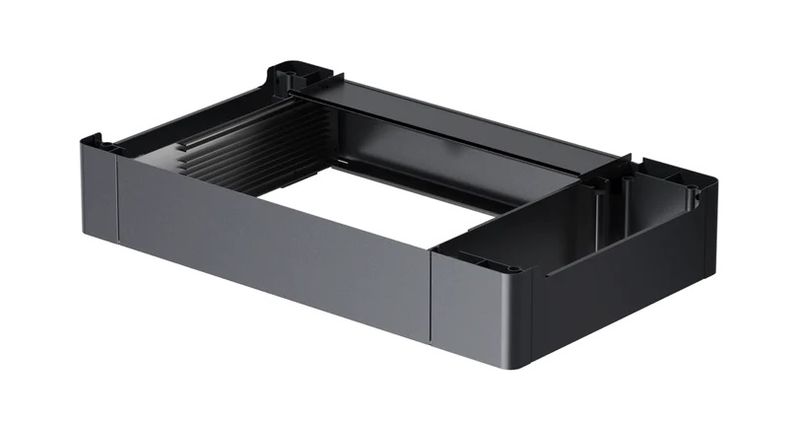

  • Riser Base

    The xTool P2 Riser Base increases the maximum height of an object to be engraved up to 215 mm. The base is completely enclosed and ensures safe operation. It is compatible with the Automatic Conveyor Feeder and the RA2 Pro rotary attachment.

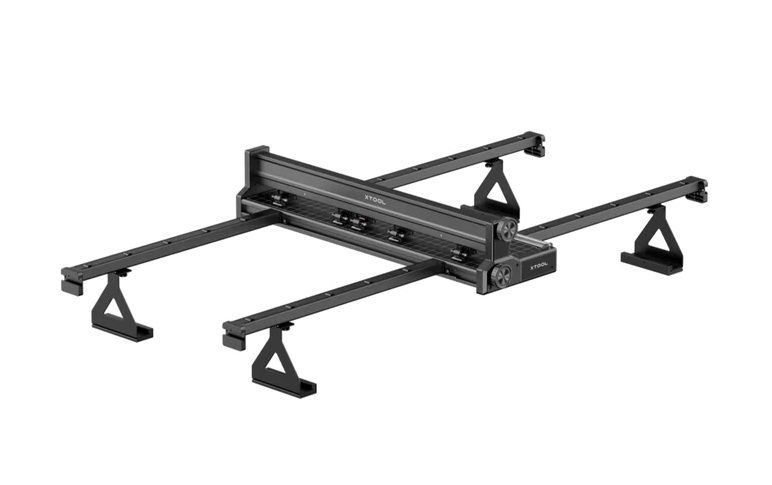

  • Automatic Conveyor Feeder

    The Automatic Conveyor Feeder is used with a pass-through function for long material boards and allows for automatic engraving path planning and material feeding. It ensures precise material positioning and eliminates inaccuracy usually caused by manual feeding. By combining the Basic kit containing two pairs of conveyor rails with three additional kits (each containing two pairs of rails), you can handle materials of up to 3 meters long. Note that the Automatic Conveyor Feeder must be used with the Riser Base.

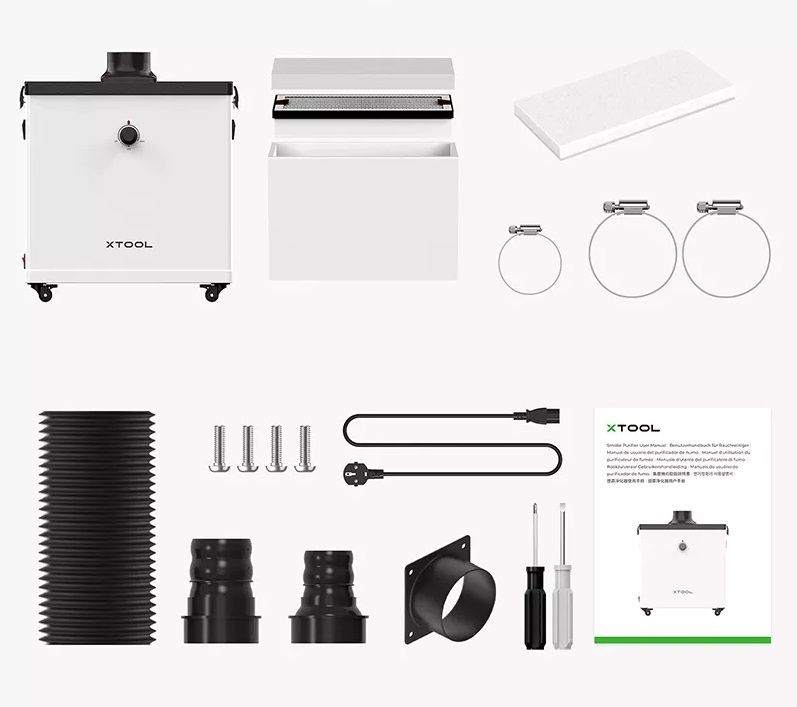

  • Smoke Purifier

    The xTool Smoke Purifier is connected to the machine and features a large, 250 x 195 x 390 mm, filter with three-stage filtration including activated carbon and HEPA filters. It efficiently absorbs dust particles, toxic fumes, and unpleasant odors, allows adjusting the suction power, and works very quietly, with the noise level not exceeding 55 dB.

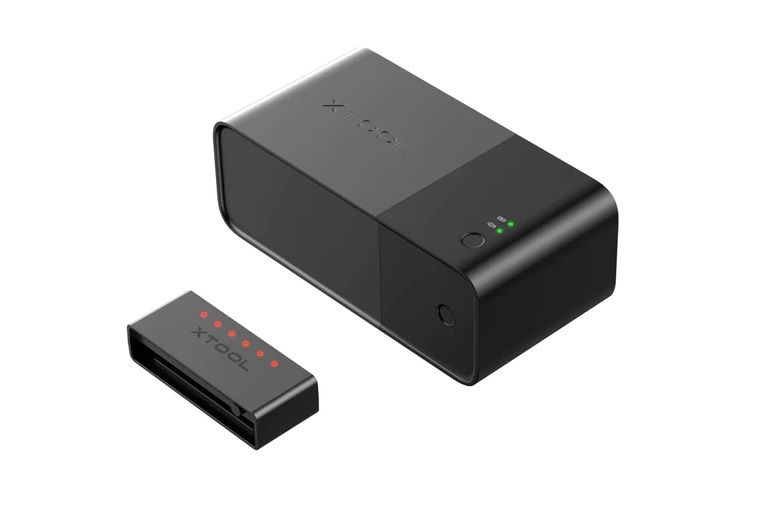

  • Fire Safety Set

    Equipped with 5 fire detection sensors, the Fire Safety Set triggers the alarm as soon as it detects fire. A few seconds later, the smart switch shuts down the machine, and CO₂ gas is pumped into the working area to extinguish fire and prevent possible damage to the machine.

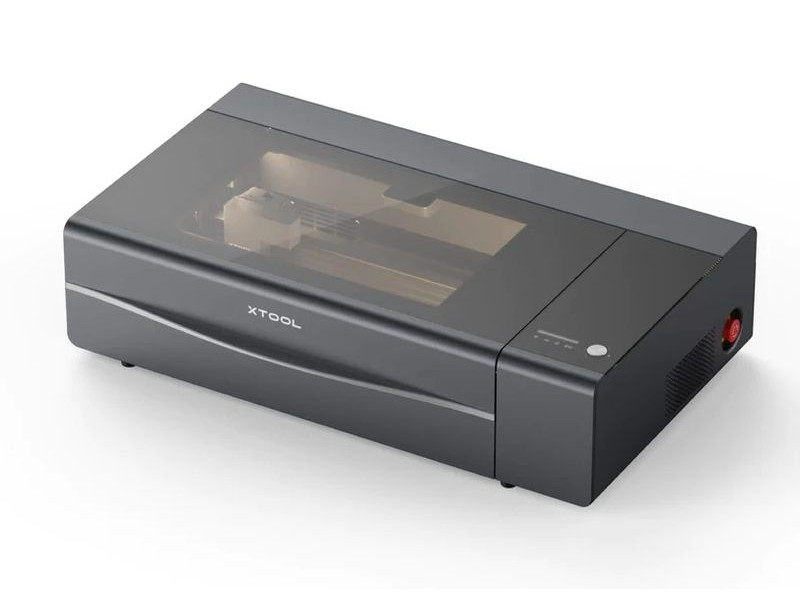

  • Look and feel

    The xTool P2 CO₂ laser cutter and engraver is available in a dark gray color. Its stylish look makes it ideal for any workshop or design studio.

    The machine dimensions are 39.4 x 25.1 x 10.6 in (1000 x 639 x 268 mm). It weighs 99.2 lb (45 kg).

Brand Xtool
Dimensions 1000 x 639 x 268 mm
Connectivity USB, Wi-Fi, Ethernet
Laser spot size 0.15 x 0.2 mm
Cameras Dual 16 MP panoramic + close-range
Software xTool Creative Space, LightBurn
Air assist 15–150 kPa
Exhaust fan 145 CFM
File types SVG, DXF, PNG, JPG, BMP, etc.
Laser module output power 55W
Laser type CO₂
Lifespan 6000–8000 hours
Max. engraving speed 600 mm/s
Max. workpiece height 64 mm (71 mm without tray)
Operating systems Windows, macOS
Precision 0.01 mm
Water-cooling system capacity 1.4 L
Weight 45 kg
