xTool S1 Automatic Conveyor Feeder

SKU
XT_P5010291
Manufacturer No
P5010291
Rating:
80 % of 100
$419.00
Add to Wish List

Description

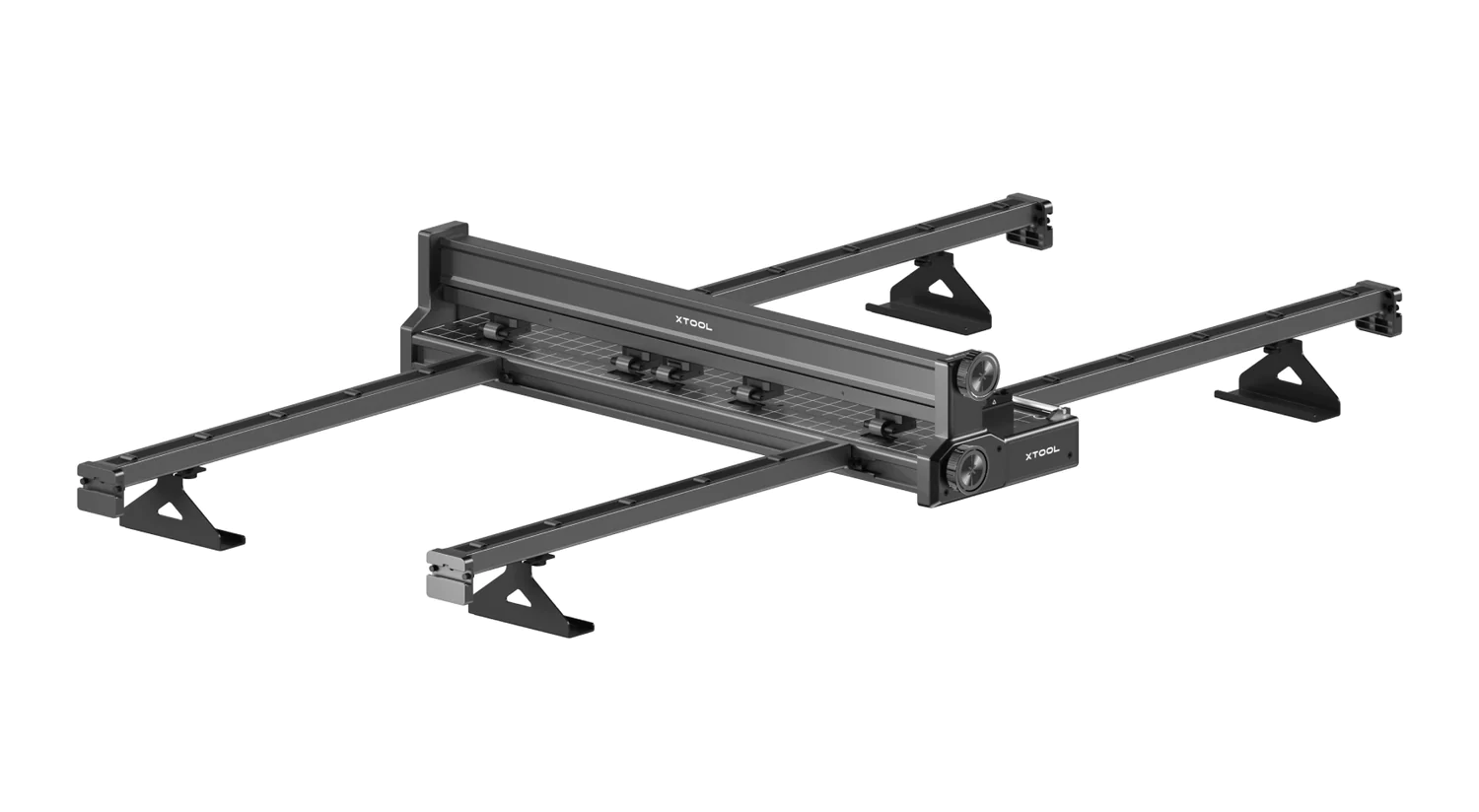

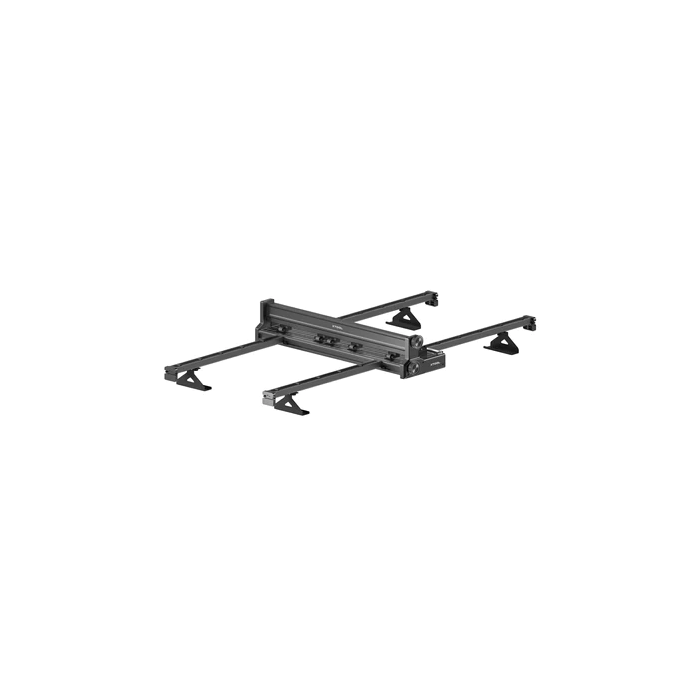

xTool S1 Automatic Conveyor Feeder

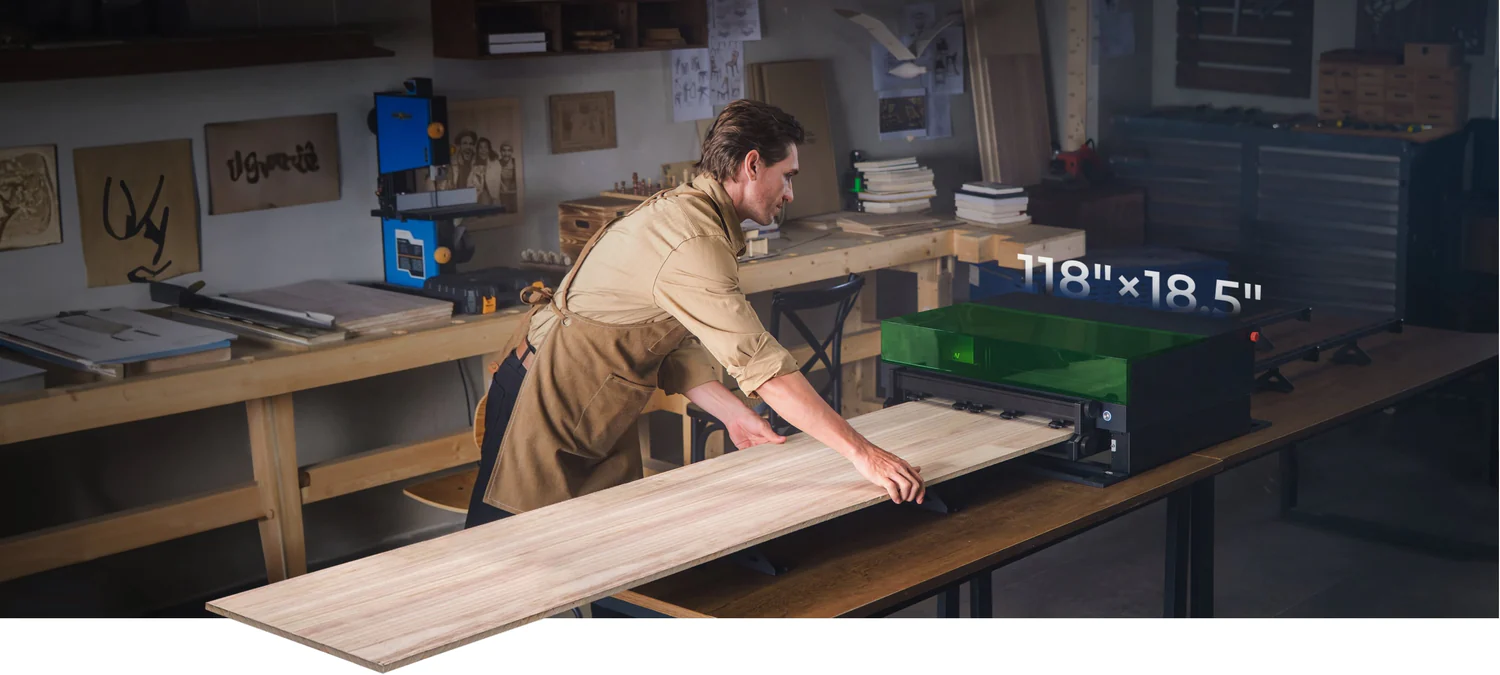

Extra Large Processing Area



The working area of 118''×18.5'', along with the S1 Conveyor Feeder, totally makes
batch engraving and cutting much easier.





*Maximum length requires additional purchase of 8 pairs of rails.



Unleash Your Creativity Everywhere





Creations Unrestrained by Materials



The material range is expanded from plywood, acrylic and fiberboard to
soft materials like felt, cork and EVA.










Make Your Use Easier
  • Pressing Wheels, High Stability

    The upper and lower pressure wheels use anti-slip materials, and materials of various sizes can be easily fixed to prevent them from slipping or shifting during the conveying process.

  • Buckle Design, Easier Assembly

    With buckle design, the conveyor rail can be installed easily.

  • Color Markings for Pressure Setting

    Different pressures need to be set for processing different materials. With color markings quickly matching each material pressure level, the pressure can be easily adjusted according to the material type.

  • Knob for Easy Positioning Adjustment

    Users can easily adjust the position of materials with the lower knob.

Specification
Applicable to  xTool S1
Package Size 29.8''*10.7''*8.5''
(757*271×*216mm)
Product Size 24.7''*7.9''*5.3''
(628*200*135mm)
Product Weight 7.8kg
Max. speed 160mm/s
Maximum Processing Area 118''×18.5'' (3000*470mm)
Maximum Material Width "21.5'' (545mm)"
Minimum Material Width 2.5'' (65mm)
Maximum Material Thickness 0.55'' (14mm)
