Eisco Labs High Quality, Standard Spectrometer - Model PH0619

SKU
Eisco_PH0619
Manufacturer No
PH0619
Rating:
0 % of 100
$440.54
Add to Wish List

This is a special order item and delivery can take up to 90 days. Please request a quote for lead time.

Manufacturer ID - PH0619

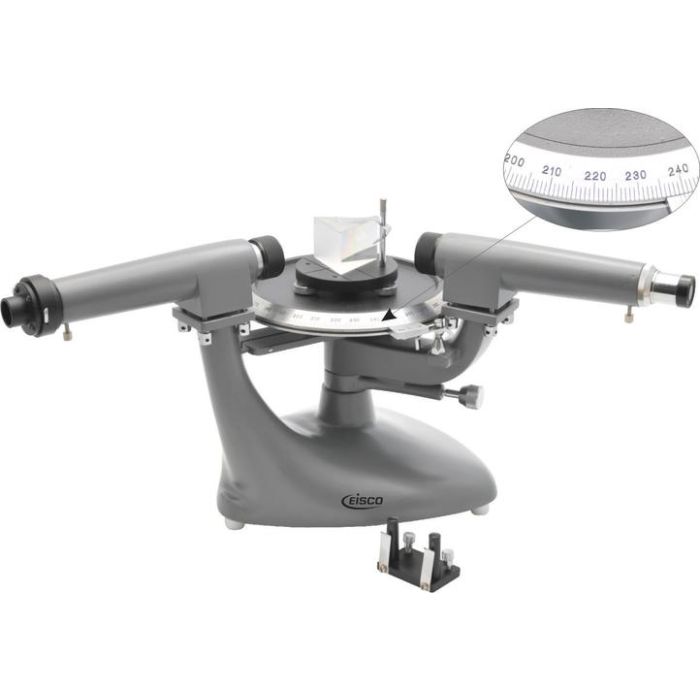

  • Goniometer-type spectrometer provides hands-on experience observing and measuring light spectra
  • 0 to 360 degree rotation, 1 degree graduations, and 0.1 degree vernier scale
  • Collimator has an adjustable slit, an achromatic converging lens with a 178mm focal length, and a locking screw
  • Prism table with 175mm diameter rotates around the central axis and has three leveling screws to ensure precise placement
  • Astronomical-type telescope has achromatic objective and Ramsden eyepiece with crosswire, and is mounted on heavy bearing to rotate around the central axis of the instrument
  • Description
    The Eisco PH0619 laboratory-grade goniometer-type spectrometer has 0 to 360 degree rotation, 1 degree graduations, and a 0.1 degree vernier scale to provide hands-on experience observing and measuring light spectra. The collimator is mounted on a spring-loaded support, integral with the base. The collimator tube has an adjustable slit on one end and an achromatic converging lens with a 178mm focal length on the other end. The lens is secured in a tube that can be hand adjusted to ensure the slit is in the focal plane of the lens to produce parallel rays. The collimator scale has a 170mm diameter and 0 to 360 degree rotation at 1 degree intervals. It is capable of independent rotation and has a locking screw. The prism table is mounted on a 175mm diameter circular degree scale. The scale is rotatable around the central axis and is provided with a clamping screw. The prism table has three leveling screws and marked lines to assist with precise placement of the prism (sold separately). The astronomical-type telescope is mounted on heavy bearings, and can be rotated around the central axis of the apparatus. It consists of an achromatic objective at one end, and a Ramsden eyepiece with crosswires at the other end. The position of the lens can be hand adjusted. A clamping screw allows the position of the telescope to be fixed, and a tangent screw provides fine adjustment. A vernier scale allows the position of the telescope to be read to a precision of 0.1 degrees. The body and structural parts of the spectrometer are comprised of heavy castings to provide precision and durability. The spectrometer weighs 10.9 lb. and is 11 x 12.2 x 16.5 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back).

    Includes:
    - Eisco PH0619 spectrometer
    - Prism clamp
    - Diffraction grating holder
    - Screwdriver
    - Tommy bar
    - Storage box
    - Instructions
    Specification
    Brand Eisco Labs
    Length 16.5
    Width 12.2
    Height 11
    Weight 10.9
    Package Length 8
    Package Width 6
    Package Height 1
    Package Weight 0.1
