Induction Coil - 50mm Spark - 11.5" Long, 7" Wide, 6" tall - Eisco Labs

See Sale Pricing at Checkout

SKU

Eisco_PH1168F

Manufacturer No

PH1168F

Eisco Labs

Rating:

0 % of 100

0 Reviews Add Your Review

$196.17

Quantity:

Add to Wish List

This is a special order item and delivery can take up to 90 days. Please request a quote for lead time.

Manufacturer ID - PH1168F

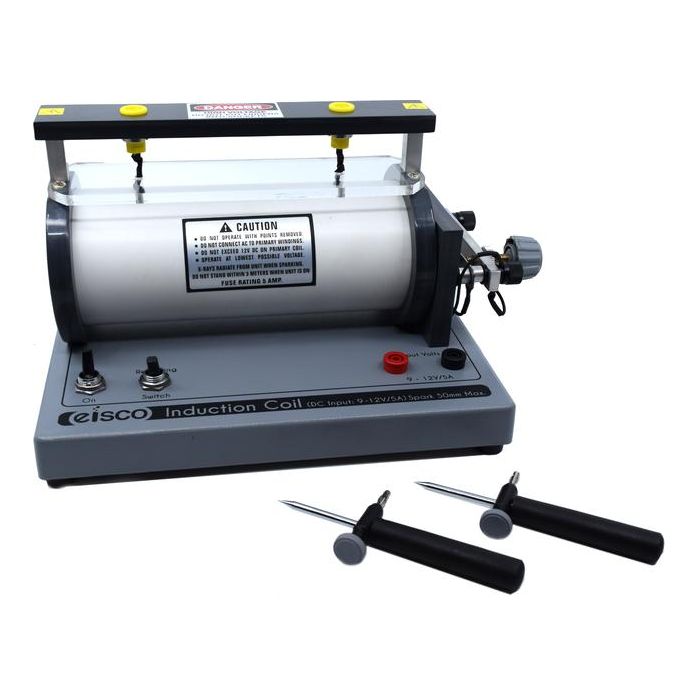

50mm Spark Induction Coil

Includes Coil, 2 Spark Rods, Shaker, Reversing Switch, On/Off Button and Power Sockets

Provides very high voltages (several tens of thousands of volts) from a DC source.

Simply connect a power supply 9-12V / 5A maximum. The continued production of sparks is obtained by adjusting the shaker and voltage

Great for physics demonstrations and experiments

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The induction coil provides very high voltages (several tens of thousands of volts) from a DC source. The principle is based on a step-up transformer comprised of a primary winding, a few tens of turns, and a secondary winding, hundreds of thousands of turns. To produce permanent sparks, it is necessary to cut the current flowing in the primary winding with a shaker (electromagnetic bell).

The induction coil stands 6" tall, 11.5" wide and 7" long. Each spark rod measures 5.25" long and 2.25" wide
