MD-600D
$16,999.00
The MD-600D 3D Printer is a powerful professional-grade 3D printer with a printing size of up to 600mm cube. Featuring its high-temperature 350 degrees hotend dual extruder and innovative rapid printing capabilities, it is designed to quickly print large industrial parts with complex structures using industrial-grade materials.
Description
-

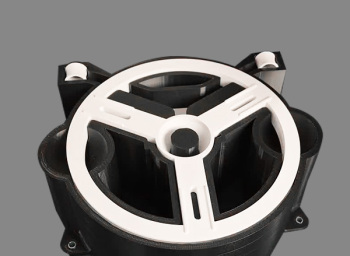

Wind Turbine Case Sharing
Filament: PLA-HF
Speed: 250mm/s
Model size: 600*500*600mm
Printing time: 24 hours -
-

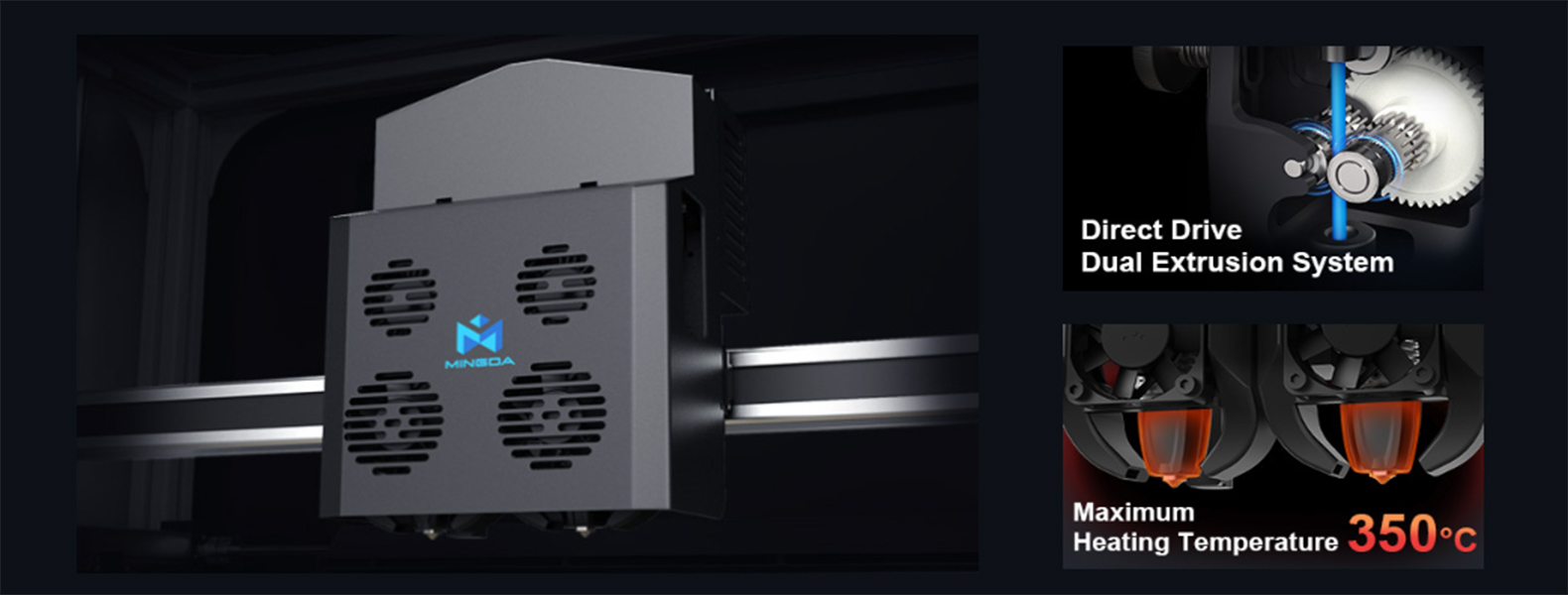

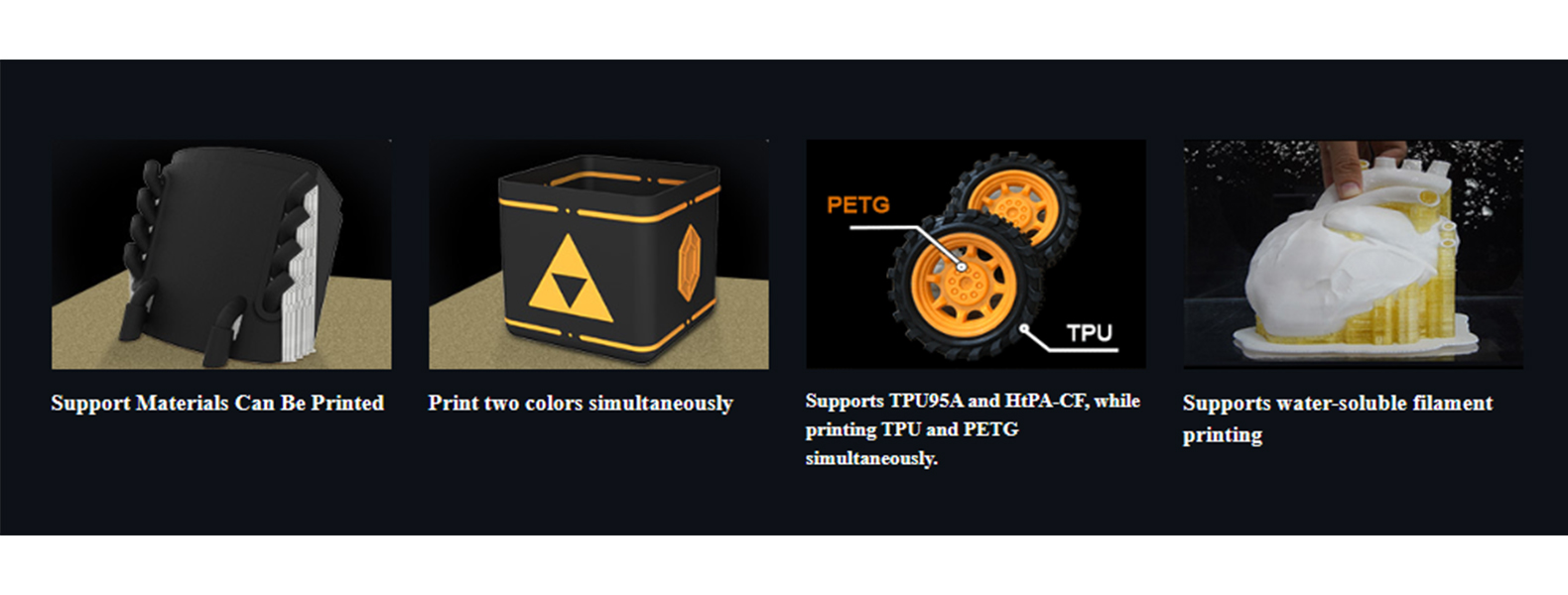

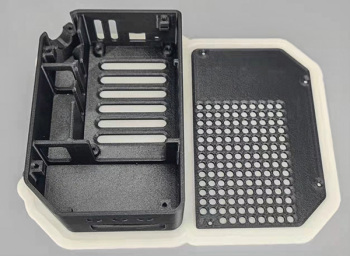

Dual Printheads Assits in Printing Complex Structural Models with Remarkable Precision.
Printing
-
High PrecisionUsing linear rails structure and closed-loop motor design to ensure the stability and accuracy of the printing process
Closed-loop MotorsUsing a closed-loop motor, it has fast response speed, no inertia and no delay. Closed-loop control overcomes the out-of-step problem. Heat and noise are significantly reduced. It enables printing models with ultra-high performance and speed.
-
Exceptional Stability In Long-Time Printing
● Customized CNC sheet metal integrated molding
Ensures the stability of the machine, greatly extending its lifespan. High-quality profiles and hardware guarantee sustained and efficient operation of the machine. MINGDA 3D printers, developed since 2012, have been in operation for over 11 years, with each machine averaging over 35,000 hours of printing time, showcasing unparalleled stability. -
PEI Flexible Printing Platform
It has strong adhesion, high temperature resistance, and is suitable for various consumables. It can be easily removed by bending.
-
-
Hands-Free Auto Leveling
Making preparation before printing more convenient, Accurate first layer detection.
-
Self Check When Power On
When power on it can automaticly check the status of the extruder, hot bed, camera, automatic leveling, fan, and other components; if there are any abnormalities, a prompt will be displayed on the printer screen for quick and convenient processing.
-
-
Resume Printing And Filament Detection
The printer will automatically remember its current position and save printing data. In the event of a sudden power outage, it will lower the platform and retract the filament. Upon power restoration, it will resume seamless printing from the last stopping point.
-
Large Printing Size
Large Printing Size: 600*600*600mm
Machine size: 1300*965*1255mm

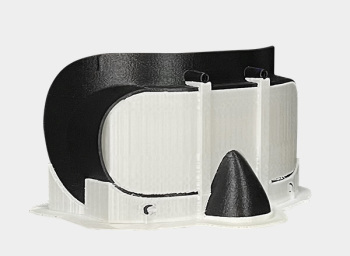

Applicable Industries

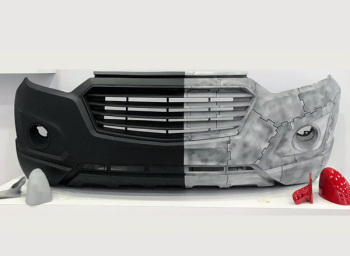

Automotive industry
Injection mold
Functional prototyping
Fiture

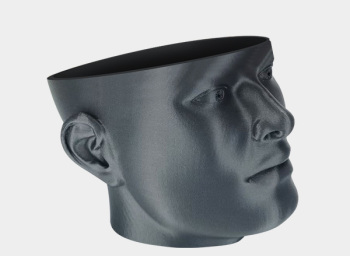

Portrait

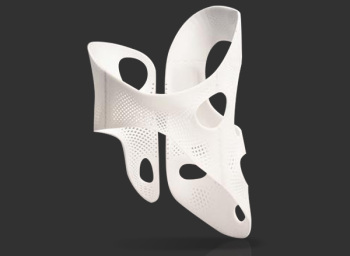

Medical Industry
Specification
| Product Model |
MD-600D
|
|---|---|
| Print Technology | Fused Deposition Modeling(FDM) |
| Print Volume | 600 * 600 * 600 mm |
| Machine Dimensions | 1300 * 965 * 1255 mm |
| Extruder Type | Dual Extruders |
| Nozzle Diameter | 0.4mm (0.6, 0.8, 1.0 mm optional) |
| Max Extruder Temperature | ≤350°C (Recommended temperature ≤320 ℃) |
| Platform Temperature | ≤110°C |
| Max Flow | 40mm³/s |
| Max Print Speed | 500mm/s (Recommend Printing Speed: 200-300mm/s ) |
| Support Software | MingDa OrcaSlicer, Prusa Slicer, etc |

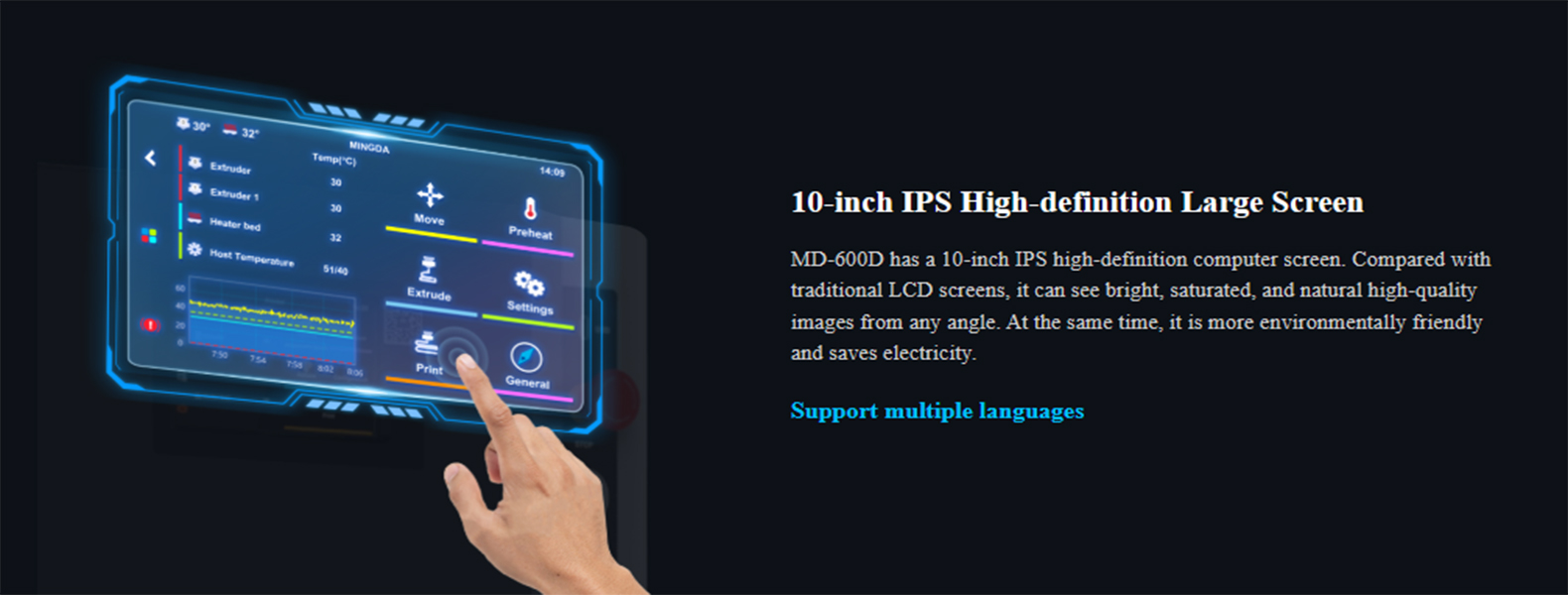

| Display Screen | 10-inch HDMI touch screen |
| Input Voltage | 100/240AC 50/60Hz |
| Rated Power | 200W |
| Firmware | klipper |
