Steam Engine Model - Working Piston, Slide Valve, and Link Motion - Eisco Labs
SKU
Eisco_PH0483
Color
Matte Dark Blue
Manufacturer No
PH0483
Manufacturer ID - PH0483
This is a special order item and delivery can take up to 90 days. Please request a quote for lead time.
$197.70
(Save % )
Secure transaction
-
Free Delivery
-
Easy Returns
-
Adaptation Warranty
-
Top Brand
Related Products
Description

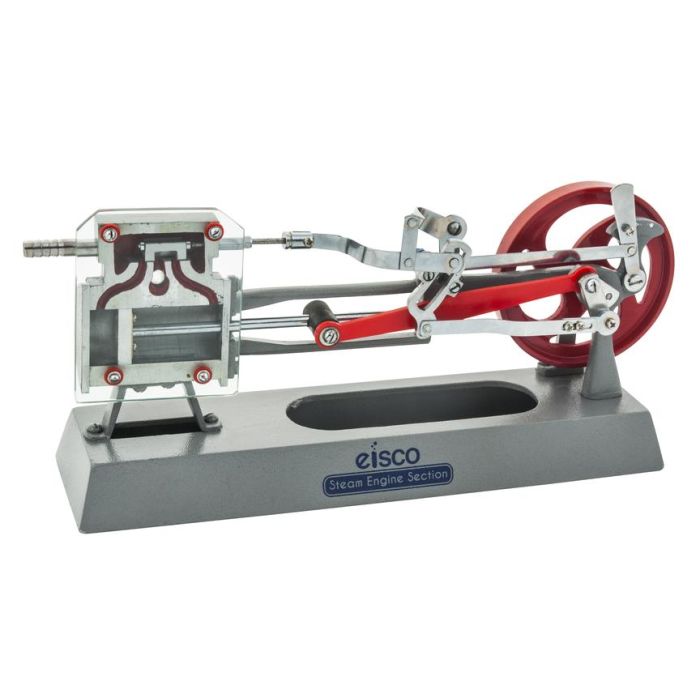

Eisco Labs Steam Engine Model
This model shows the internal structure and operating principles of a working steam engine. The metal cylinder is cross-section cut and is covered with a clear plate to show movement of the piston inside the cylinder.
Complete with working parts ? the piston, slide valve both move and the link motion and reversing method can be observed. The movement of the wheel is light enough to demonstrate even by blowing air from one's mouth.
Dimensions of model on base are 14 x 7 x 4 inches.
This model shows the internal structure and operating principles of a working steam engine. The metal cylinder is cross-section cut and is covered with a clear plate to show movement of the piston inside the cylinder.
Complete with working parts ? the piston, slide valve both move and the link motion and reversing method can be observed. The movement of the wheel is light enough to demonstrate even by blowing air from one's mouth.
Dimensions of model on base are 14 x 7 x 4 inches.
