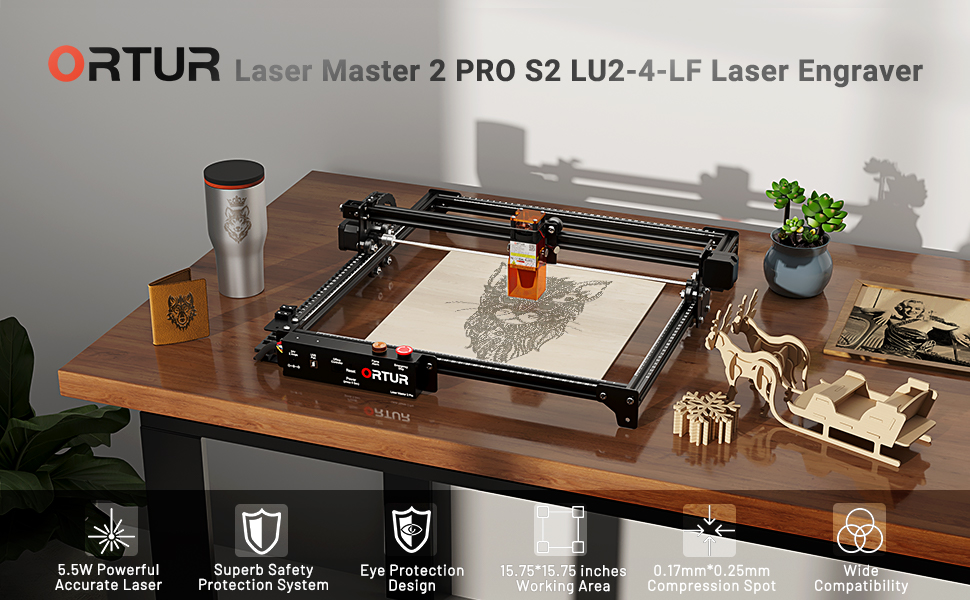

ORTUR 24V Laser Engraver 2 Pro-S2-LF

SKU
Ortur_OLM2-Pro S2-LU2-4-LF
Manufacturer No
OLM2-Pro S2-LU2-4-LF
Rating:
0 % of 100
$319.99
Add to Wish List

Manufacturer No -OLM2-Pro S2-LU2-4-LF

[Product advantage] Ortur Laser 1.8 firmware is optimized the motion algorithm and increases the maximum motion speed from 4000mm/min to 10000mm/mm, the focal point is only 0.17*0.25mm. The optical power reaches 4500-5500mW. So it can cut through 4mm plywood and 10mm pine board at a time. At the same time, the laser cutter comes with an air assist nozzle, use with our air pump could support a higher speed and cut better.

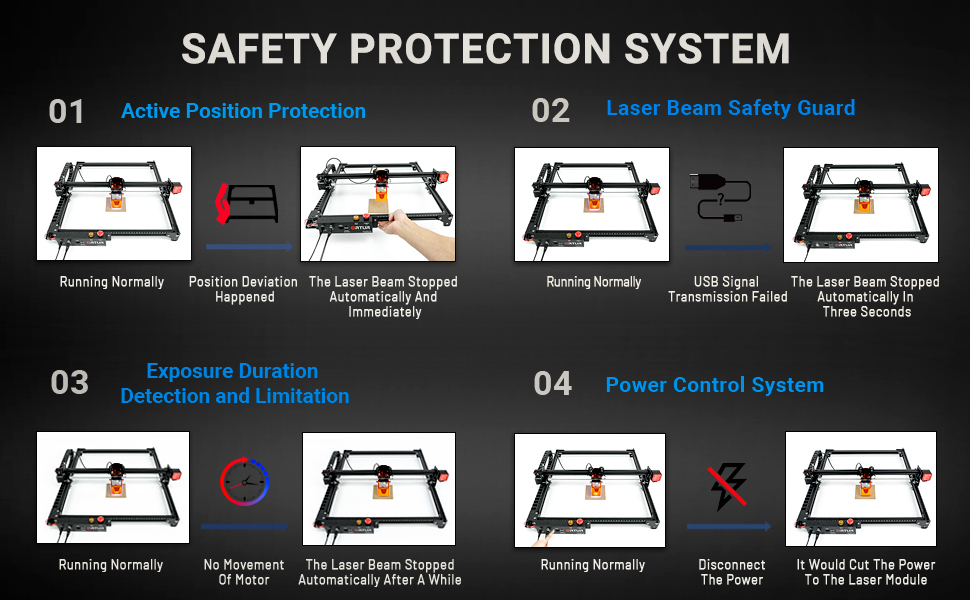

[Safety protection] Laser Master newly upgraded 5 Safety protection. 1. When the engraving machine is displaced or tilted, it will automatically stop the laser; 2. When the engraving machine or computer crashes, the laser will stop working immediately. 3. The engraving machine is turned on, but there is no movement for a long time, the laser will be turned off automatically. 4. Flame Detector + Buzzer Alarm 5. Emergency stop switch for an emergency.

[Accessories system update] 1. The laser engraving machine is equipped with the latest OLM-PRO-V10 motherboard, It could preprocess 32 instructions, support baud rate as high as 921600 the engraving accuracy is higher, and the speed is faster. 2. The circuit system with 24V voltage is upgraded, the current is lower, and the system is safer. 3. Update Ortur Laser 1.8 firmware, which is the most advanced laser engraving machine firmware at present. 4. Support Ortur offline control screen.

Description

NOTE

LU2-4-LF is good at engraving and better at cutting, and could support a higher speed.

 It is not that the smaller the light spot, the better the effect when engraving photos. You may need to increase the laser spot to get a better picture effect.

 The competitors may falsely promote the power of similar laser modules as 40W, or even 60W, please take care.

It has a longer Focal Length, so it has a longer Depth of Field, but a bigger Focal Spot.

 Extra Accessories: Safety Glasses, 10PCS Metal Business Cards, 2PCS Color Paper, 4PCS Pet ID Tags.

MUCH BETTER EFFECT

This laser engraver supports PWM mode.

Pre-assembled parts, just need 10 - 20 minutes to install the machine.

400 x 400 mm large engraving area.

Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance

Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.

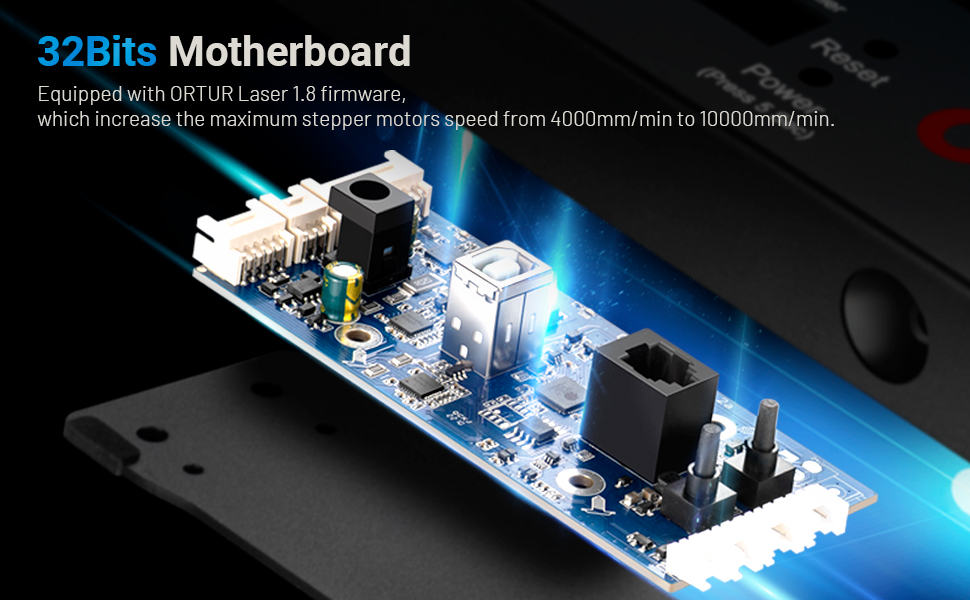

UPGRADE MOTHERBOARD

 Specialized Motherboard with 32Bits MCU. It could pre-process 32 instructions, support baud rate as high as 921600, which is much more powerful!

The Most Advanced 32Bits Laser Engraver Firmware-ORTUR laser master firmware, smarter, faster, higher precision and easier to use.

 Laser power range could be S0 - S1000, compared to 8Bits desktop laser engravers, which only has S0 - S255, ORTUR Laser Master could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper , that the 8Bits high power laser engravers could not do.

 Engraving speed could be as high as 3000mm/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S ).

Specification
Model Number LM2-Pro S2-LU2-4-LF
Power System 24V/2A
Default Focal Length 50mm
Wave Length 445±5nm
Power Rate S0-S1,000
Material Capability ‎‎‎‎Square spPaper, Corrugated Paper, Wood, Acrylic, Cloth, Denim, Leather, Base Plate, ABS-based Color Board, Rubber, Cork, Sandpaper, Food, Glass Fiber, Plastic, etc.
ot
