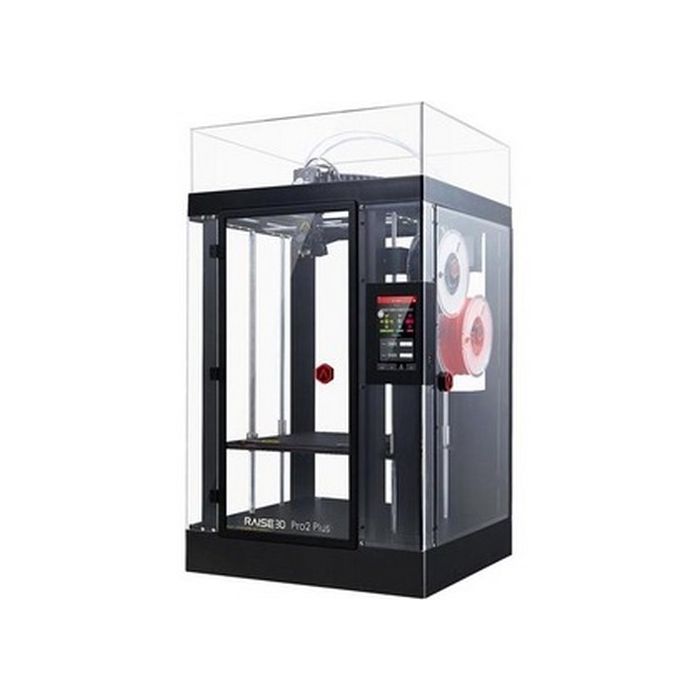

PRO2PLUS INDUSTRIAL 3D PRINTER 12X12X24 PRNT VOL 0.01MM RESOLUTION

SKU
Raise_3D_3DZ414
Manufacturer No
3DZ414
Rating:
0 % of 100
$5,999.00
Add to Wish List

Raise 3D Printer:

The Raise3D Pro2 Plus is a professional-grade 3D printer manufactured by Raise3D, a company known for producing high-quality 3D printers. The Pro2 Plus is an upgraded version of the Pro2 model.

Features:

  • The machine features an enclosed chamber for enhanced heat management and remarkable build quality.
  • The Pro2 Plus has an impressive build volume of 305 x 305 x 605 mm (12 x 12 x 23.8 inches) which allows it to create larger and more complex 3D prints.
  • The Raise3D Pro2 Plus prints with a wide range of filament types, including PLA, ABS, HIPS, TPU, PC, PP, Nylon, TPE, FLEX, PETG, Metal PLA, Wood PLA, Carbon Fiber, and other materials.
  • Dual extrusion allows to print with two different materials or colors simultaneously which enables to create more intricate and detailed prints with different properties.
  • The Pro2 Plus printer is equipped with a heated build plate, which helps prevent warping and ensures better adhesion of the printed object to the build surface. The build plate can reach temperatures up to 110Ā°C (230Ā°F).
  • The Pro2 Plus features an enclosed build chamber that helps maintain a stable printing environment, minimizing the impact of temperature fluctuations and external factors on the print quality.
  • The Rise 3D Plus printer has a power-loss recovery feature that allows you to resume printing from where it left off, avoiding wasted time and material.
  • With a layer resolution range of 10 to 300 microns, the Pro2 Plus is capable of producing highly detailed prints with smooth surfaces and intricate geometries.
Description

When Big Is Not Big Enough

24/7 Reliability ā€“ Multiple Fail Safe Systems ā€“ Industrial Grade Components

For Material Compatibility up to 300ā€šĆ‘Ɖ

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA PP / Glass Fiber Enforced / Carbon Fiber Enforced Metal Particles Filled / Wood Filled

High Resolution

Unique motion system for superior part quality and resolution.

Unmatched layer resolution: 0.01 layer thickness
Precise positioning: 0.0125mm positioning resolution on x/y axis

Intuitive User Experience

7-inch touch screen.

Visual interface / Rapid reviewing / Visual print progress / Full adjustment control

Second Generation Power Loss Resuming

Never lose a print.

ā€œI actually knocked off the power accidentally when i hit the cord when I was vacuuming, I was currently doing a 96 hours print with only 2 hrs left. As I raised my head to scream in terror, I turned back on the machine and it asked me to continue printā€¦THIS WAS A LIFESAVERā€by Shon Robinson

Remote User Interface

Operate efficiently with ideaMaker by connecting wirelessly to your Pro2 Series Printer.
Built-in camera.

Next Generation Motion Controller

Top reliability. Accurate current control. Silky smooth movement. Superior thermal performance.

400MHz ARM Cortex-M7 32bit RISC FPU.
Industrial grade components.
Standalone motor driver.
256 micro-steps driver system.

New Extruder with Filament Run-Out Sensor

Better grip. No slipping. Worry free prints.

Dual gear driven extruder.
4āˆšĆ³ increased torque performance.
Fluent and sensitive, optical run-out sensor.

Specification
Build Volume 12Ɨ12Ɨ23.8 inch / 305Ɨ305Ɨ605 mm
Outer Dimensions 620 x 590 x 1105 mm
Accuracy 0.78 x 0.78 x 0.078 micron
Connectivity Wi-Fi, LAN, USB port
Display LCD touch screen
Extruder Type Dual
Filament diameter 1.75mm
Max. extruder temperature 572 Ā°F / 300 Ā°C
Max. heated bed temperature 230 Ā°F / 110 Ā°C
Min. layer height 10 microns
Nozzle size, mm 0.2ā€“0.8 mm
Operating system(s) Mac OS X, Windows, Linux
Printable material(s) PLA, ABS, HIPS, TPU, PC, Nylon, TPE, FLEX, PETG, Metallic PLA, Wood PLA, Carbon Fiber, and other materials
Printer type Filament
Technology FDM
