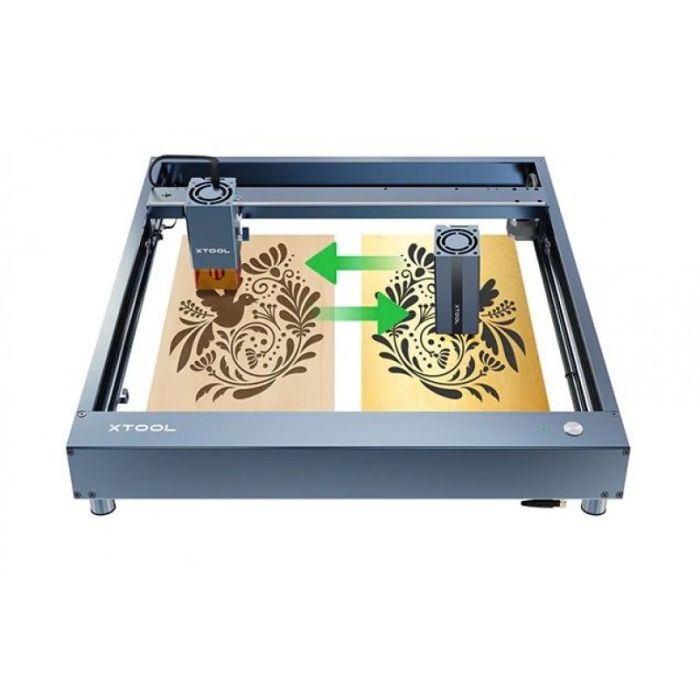

xTool D1 Pro Grey 20W 2-in-1 kit (20W+1064nm)

Manufacturer No
80 % of 100
Add to Wish List

Manufacturer ID -P1030254-P5010176

The xTool D1 Pro 20W is one of the most powerful cutting / engraving diode laser machines in the market. This DIY kit featuring a robust aluminum open-frame construction and stainless steel rollers and linear rails is easily assembled thanks to the detailed instructions. The D1 Pro 20W is equipped with a blue laser module comprising four 5 W diode lasers focused on the same spot, which provides the incredible output laser power of 20 W. A 10-mm basswood or an 8-mm acrylic plate can be cut through in one pass. In addition, the kit includes the xTool D1 Pro 1064 nm infrared laser module which works perfectly on all metals as well as plastic and acrylic surfaces.


Compatible materials

The xTool D1 Pro can work with a wide range of materials. The blue laser module can be used to cut most kinds of wood, including plywood and composite, paper and cardboard, cork, acrylic, leather, and others. All these materials can be engraved as well. Besides, the blue laser can engrave coated metals, stainless steel, plastic, marble, stone, ceramic tiles, glass, and more. You can find the optimal material settings on the manufacturer’s website.

Working area

The working area of 430 x 390 mm allows you to implement large-scale design projects or to engrave multiple smaller patterns at a time which can be extremely helpful for small businesses.

Machine controls

On the right side of the machine frame there is a power and a USB port and a power switch. On top of the front panel you will find a start / stop button and a light status indicator.The machine is equipped with an easy and convenient focus adjustment mechanism using the lever on the laser module. Besides, you can further lower the laser head when cutting thick materials to achieve the optimal focal length and the maximum cutting capacity of the laser.


The xTool D1 Pro comes with the proprietary xTool Creative Space software. This free software is user-friendly, functional, and allows for firmware updates. xTool Creative Space is compatible with Windows and macOS.Those looking for enhanced functionality can use the third-party LightBurn engraving software which is more powerful and supports more file formats, such as AI, SVG, DXF, PDF, HPGL, and PLT for vector files and PNG, JPEG, BMP, TIFF, TGA, and GIF for raster images. LightBurn is a paid software but it offers a free trial period. It is compatible with Windows, macOS, and Linux.

Brand Xtool
Manufacturer No P1030254-P5010176
Dimensions 321 x 138 x 105 mm
